P. 15

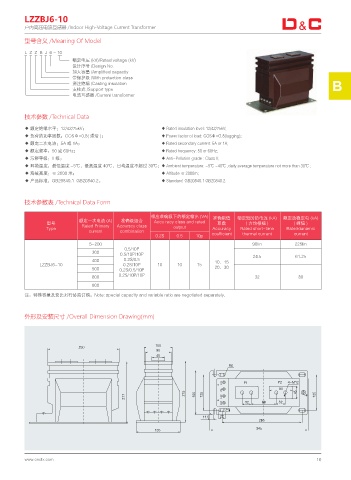

LZZBJ6-10
          户内高压电流互感器 /Indoor High-Voltage Current Transformer

          型号含义 /Meaning Of Model

          L  Z  Z  B  J  6 - 10
                          额定电压 (kV)/Rated voltage (kV)
                          设计序号 /Design No.
                          加大容量 /Amplified capactiy
                          带保护级 /With protection class
                          浇注绝缘 /Casting insulation                                                                 B
                          支柱式 /Support type
                          电流互感器 /Current transformer


          技术参数 /Technical Data

          ◆ 额定绝缘水平:12/42/75kV;                           ◆ Rated insulation level: 12/42/75kV;
          ◆ 负荷的功率因数:COSΦ=0.8( 滞后 );                      ◆ Power factor of load: COSΦ=O.8(lagging);
          ◆ 额定二次电流:5A 或 1A;                              ◆ Rated secondary current: 5A or 1A;
          ◆ 额定频率:50 或 60Hz;                              ◆ Rated frequency: 50 or 60Hz;
          ◆ 污秽等级:II 级;                                   ◆ Anti-Pollution grade : Class II;
          ◆ 环境温度:最低温度 -5℃,最高温度 40℃,日均温度不超过 30℃;◆ Ambient temperature: -5℃ -40℃ ,daily average temperature not more than 30℃ ;
          ◆ 海拔高度:≤ 2000 米;                               ◆ Altitude ≤ 2000m;
          ◆ 产品标准:GB20840.1  GB20840.2。                   ◆ Standard: GB20840.1 GB20840.2.



          技术参数表 /Technical Data Form

                                                     相应准确级下的额定输出 (VA)     准确限值     额定短时热电流 (kA)   额定动稳定电 (kA)
                            额定一次电流 (A)     准确级组合
                 型号                                   Accu racy cIsss and rated   系数  ( 方均根植 )        (峰值)
                 Type        Rated Primary   Accurscy cIass  output       Accuracy   Rated short-time  Rateddunamic
                                current   combination                     coefficient  thermal current  current
                                                       0.2S   0.5   10p
                                5-200                                                   90Iin         225Iin
                                            0.5/10P
                                 300      0.5/10P/10P                                   24.5           61.25
                                 400        0.2S/0.5                       10、15
               LZZBJ6-10                   0.2S/10P    10     10     15
                                 500      0.2S/0.5/10P                     20、30
                                 600      0.2S/10P/10P                                   32             80
                                 800
          注:特殊容量及变比另行协商订购。Note: special capacity and variable ratio are negotiated separately.


          外形及安装尺寸 /Overall Dimension Drawing(mm)









                                                                                3


                                                                                     1           1     .
                                                                              4


                                                                              4
                                                                              4

                                                                              4
