3LB3 Series universal anti-explosion switch / BK10 Anti-explosion control switch

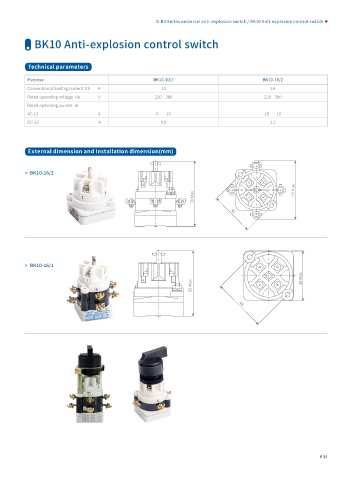

BK10 Anti-explosion control switch
Technical parameters
Purpose BK10-10/1 BK10-16/2
Conventional heating current Ith A 10 16
Rated operating voltage Ue V 220 380 220 380
Rated operating current Ie
AC-15 A 6 10 16 10
DC-13 A 0.8 1.2
External dimension and Installation dimension(mm)
> BK10-16/2
4 1 70 Max
78 Max 48
> BK10-16/1
48 Max
4 1
65 Max 48
