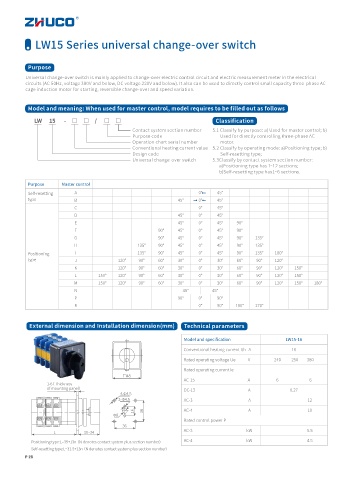

LW15 Series universal change-over switch

Purpose
Universal change-over switch is mainly applied to change-over electric control circuit and electric measurement meter in the electrical
circuits (AC 50Hz, voltage 380V and below, DC voltage 220V and below). It also can be used to directly control small capacity three-phase AC
cage induction motor for starting, reversible change-over and speed variation.

Model and meaning: When used for master control, model requires to be filled out as follows

LW 15 - □ □ / □ □ Classification
Contact system section number 5.1 Classify by purpose: a) Used for master control; b)
Purpose code Used for directly controlling three-phase AC
Operation chart serial number motor.
Conventional heating current value 5.2 Classify by operating mode: a)Positioning type; b)
Design code Self-resetting type;
Universal change-over switch 5.3Classify by contact system section number:
a)Positioning type has 1~12 sections;
b)Self-resetting type has1~6 sections.
Purpose Master control
Self-resetting A 0° 45°
type B 45° 0° 45°
C 0° 45°
D 45° 0° 45°
E 45° 0° 45° 90°
F 90° 45° 0° 45° 90°
G 90° 45° 0° 45° 90° 135°
H 135° 90° 45° 0° 45° 90° 135°
Positioning I 135° 90° 45° 0° 45° 90° 135° 180°
type J 120° 90° 60° 30° 0° 30° 60° 90° 120°
K 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
L 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
M 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° 180°
N 45° 45°
P 90° 0° 90°
R 0° 90° 180° 270°

External dimension and Installation dimension(mm) Technical parameters

Model and specification LW15-16
Conventional heating current Ith A 16
Rated operating voltage Ue V 240 250 380

Rated operating current Ie
□48
AC-15 A 6 6
1-6（ Thickness
of mounting panel）
DC-13 A 0.27
4-Φ4.5
2-Φ4.5 AC-3 A 12
16 36 AC-4 A 10
Φ8
Rated control power P
36
AC-3 kW 5.5
L 30~34
Positioning type:L=35+13n （N denotes contact system plus section number） AC-4 kW 4.5
Self-resetting type:L=31.5+13n （N denotes contact system plus section number）
P 26
