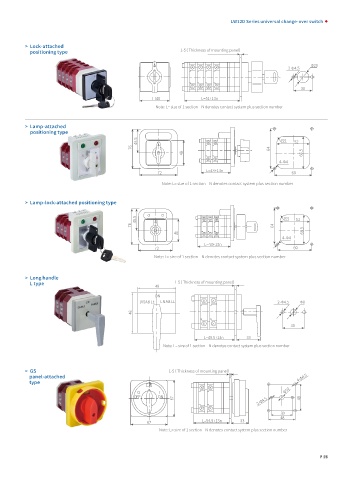

LW12D Series universal change-over switch
> Lock-attached
1-5（ Thickness of mounting panel）
positioning type
Φ20
2-Φ4.5
30
□48 L=51+13n
Note: L= size of 1 section N denotes contact system plus section number
> Lamp-attached
positioning type
45.5 R4 52
76 64
48 66.5
4-Φ4
L=43+13n
72 60
Note: L= size of 1 section N denotes contact system plus section number
> Lamp-lock-attached positioning type
45.5 R4 52
76 64
48 66.5
4-Φ4
L=43+13n
72 60
Note: L= size of 1 section N denotes contact system plus section number
> Long handle
L type 1-5（ Thickness of mounting panel）
48
ON
DISABLE ENAB LE 2-Φ4.5 Φ8
48
30
L=49.5+13n 33
Note: L= size of 1 section N denotes contact system plus section number
> GS 1-5（ Thickness of mounting panel）
panel-attached 4-Φ4.5
type
Φ10
O I
OFF ON
67 48
2-Φ4.5
30
48
L=54.5+13n 33
67
Note: L= size of 1 section N denotes contact system plus section number
