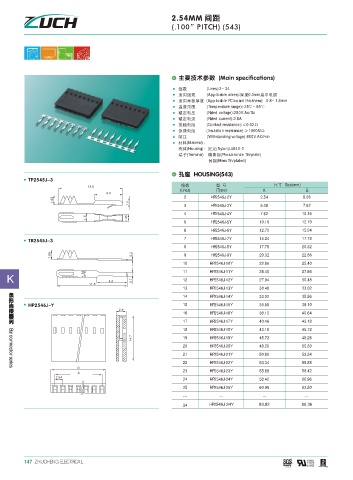

Page 168 - 温州市珠城电气有限公司（2011）

(.100 PITCH) (543) (.100 PITCH) (543)

> >
(Lines):2~34 (Lines):2~34
(Applicable wires): 0.3mm (Applicable wires): 0.3mm
(Applicable PC board thickness) 0.8~1.6mm (Applicable PC board thickness) 0.8~1.6mm
(Temperature range):-25 ~85 (Temperature range):-25 ~85
(Rated voltage):250V.Ac/Dc (Rated voltage):250V.Ac/Dc
(Rated current):2.5A (Rated current):2.5A
(Contact resistance): 0.02 (Contact resistance): 0.02
(Insulation resistance): 1000M (Insulation resistance): 1000M
(Withstanding voltage):800V.AC/min (Withstanding voltage):800V.AC/min
(Material) (Material)
(Housing) (Nylon)UL94V-2 (Housing) (Nylon)UL94V-2
(Terminal) (Phos.bronze Tin/plate) (Terminal) (Phos.bronze Tin/plate)
(Brass Tin/plated) (Brass Tin/plated)

> >
Size(mm) 12.8 Size(mm)
13.5
(Lines) (Type) A B 5.8 (Lines) (Type) A B
6.0 1.0
1.65 2 HP2546J-2Y 2.54 5.08 2 HP2546J-2Y 2.54 5.08
1.0
3 HP2546J-3Y 5.08 7.62 3 HP2546J-3Y 5.08 7.62
4 HP2546J-4Y 7.62 10.16 4 HP2546J-4Y 7.62 10.16
1.6 1.25 1.7 1.25
5 HP2546J-5Y 10.16 12.70 5 HP2546J-5Y 10.16 12.70
6 HP2546J-6Y 12.70 15.24 6 HP2546J-6Y 12.70 15.24
7 HP2546J-7Y 15.24 17.78 7 HP2546J-7Y 15.24 17.78
8 HP2546J-8Y 17.78 20.32 8 HP2546J-8Y 17.78 20.32
1.85 0.2 9 HP2546J-9Y 20.32 22.86 1.25 0.2 9 HP2546J-9Y 20.32 22.86
10 HP2546J-10Y 22.86 25.40 10 HP2546J-10Y 22.86 25.40
12
1.55 11 HP2546J-11Y 25.40 27.94 4.0 0.7 11 HP2546J-11Y 25.40 27.94
K 4.0 0.7 12 HP2546J-12Y 27.94 30.48 1.75 12 HP2546J-12Y 27.94 30.48 K
11.5
13 HP2546J-13Y 30.48 33.02 13 HP2546J-13Y 30.48 33.02
14 HP2546J-14Y 33.02 35.56 14 HP2546J-14Y 33.02 35.56
15 HP2546J-15Y 35.56 38.10 15 HP2546J-15Y 35.56 38.10
2.9 2.9
16 HP2546J-16Y 38.10 40.64 16 HP2546J-16Y 38.10 40.64
17 HP2546J-17Y 40.46 43.18 17 HP2546J-17Y 40.46 43.18
18 HP2546J-18Y 43.18 45.72 18 HP2546J-18Y 43.18 45.72
14.7 19 HP2546J-19Y 45.72 48.26 14.7 19 HP2546J-19Y 45.72 48.26
20 HP2546J-20Y 48.26 50.80 20 HP2546J-20Y 48.26 50.80 Bar connector series
21 HP2546J-21Y 50.80 53.34 21 HP2546J-21Y 50.80 53.34
22 HP2546J-22Y 53.34 55.88 22 HP2546J-22Y 53.34 55.88
B B
Bar connector series
23 HP2546J-23Y 55.88 58.42 23 HP2546J-23Y 55.88 58.42
A A
2.54 2.54
24 HP2546J-24Y 58.42 60.96 24 HP2546J-24Y 58.42 60.96
25 HP2546J-25Y 60.96 63.50 25 HP2546J-25Y 60.96 63.50
34 HP2546J-34Y 83.82 86.36 34 HP2546J-34Y 83.82 86.36

147 ZHUCHENG ELECTRICAL ZHUCHENG ELECTRICAL 148
