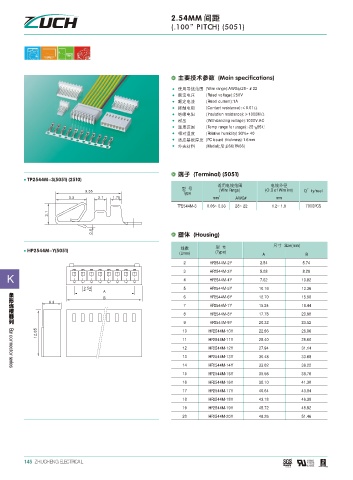

Page 166 - 温州市珠城电气有限公司（2011）

(.100 PITCH) (5051) (.100 PITCH) (5051)

> >
(Wire range):AWG 28~#22 (Wire range):AWG 28~#22
(Rated voltage):250V (Rated voltage):250V
(Rated current):1A (Rated current):1A
(Contact resistance): 0.01 (Contact resistance): 0.01
(Insulation resistance): 1000M (Insulation resistance): 1000M
(Withstanding voltage):1000V.AC (Withstanding voltage):1000V.AC
(Temp range for usage):-25~85 (Temp range for usage):-25~85
o
o
(Relative humidity):93%+40 (Relative humidity):93%+40
(P.C board thickness):1.6mm (P.C board thickness):1.6mm
(Metial): 66(PA66) (Metial): 66(PA66)

> >

9.55 (Wire Range) (O.D of Wire ins) Q ty/reel 9.55 (Wire Range) (O.D of Wire ins) Q ty/reel
Type Type
3.3 2.1 1.75 mm 2 AWG# mm 3.3 2.1 1.75 mm 2 AWG# mm
TP2544M-3 0.06~0.33 28~22 1.2~1.9 7000PCS TP2544M-3 0.06~0.33 28~22 1.2~1.9 7000PCS
3.1 3.1

0.6 > 0.6 >

Size(mm) (Type) Size(mm)
(Lines) (Type) A B (Lines) (Vertial type) (Curved type) A B
2 HP2544M-2Y 2.54 5.74 0.64 2 HW2544M-2A HW2544M-2QA 2.54 5.08
3 HP2544M-3Y 5.08 8.28 3 HW2544M-3A HW2544M-3QA 5.08 7.62
K 4 HP2544M-4Y 7.62 10.82 4 HW2544M-4A HW2544M-4QA 7.62 10.16 K
2.54 5 HP2544M-5Y 10.16 13.36 11.4 5 HW2544M-5A HW2544M-5QA 10.16 12.70
A
B 6 HP2544M-6Y 12.70 15.90 6 HW2544M-6A HW2544M-6QA 12.70 15.24
6.3 3.3
7 HP2544M-7Y 15.24 18.44 7 HW2544M-7A HW2544M-7QA 15.24 17.78
3.4
8 HP2544M-8Y 17.78 20.98 8 HW2544M-8A HW2544M-8QA 17.78 20.32
2.54
9 HP2544M-9Y 20.32 23.52 A 5.8 9 HW2544M-9A HW2544M-9QA 20.32 22.86
B
12.85 10 HP2544M-10Y 22.86 26.06 10 HW2544M-10A HW2544M-10QA 22.86 25.40
11 HP2544M-11Y 25.40 28.60 11 HW2544M-11A HW2544M-11QA 25.40 27.94
12 HP2544M-12Y 27.94 31.14 12 HW2544M-12A HW2544M-12QA 27.94 30.48 Bar connector series
13 HP2544M-13Y 30.48 33.68 13 HW2544M-13A HW2544M-13QA 30.48 33.02
14 HP2544M-14Y 33.02 36.22 0.64 14 HW2544M-14A HW2544M-14QA 33.02 35.56
Bar connector series
15 HP2544M-15Y 35.56 38.76 15 HW2544M-15A HW2544M-15QA 35.56 38.10
16 HP2544M-16Y 38.10 41.30 16 HW2544M-16A HW2544M-16QA 38.10 40.64
11.4
17 HP2544M-17Y 40.64 43.84 17 HW2544M-17A HW2544M-17QA 40.64 43.18
18 HP2544M-18Y 43.18 46.38 18 HW2544M-18A HW2544M-18QA 43.18 45.72
3.3
19 HP2544M-19Y 45.72 48.92 19 HW2544M-19A HW2544M-19QA 45.72 48.26
20 HP2544M-20Y 48.26 51.46 20 HW2544M-20A HW2544M-20QA 48.26 50.80
2.54 5.8 3.4
A
B

145 ZHUCHENG ELECTRICAL ZHUCHENG ELECTRICAL 146
