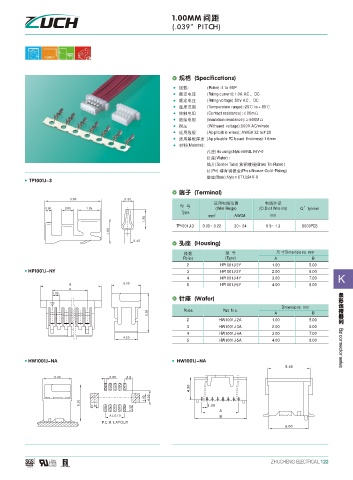

(.039 PITCH)

>
: (Poles) :4 to 60P
(Rating current):1.0A AC DC
(Rating voltage):50V AC DC
(Temperature range):-25 to+85
(Contact resistance): 20m
(lnsulation resistance): 500M
(Withsand voltage):500V.AC/minute
(Applicable wires): AWG#32 to#28
(Applicable PC board thickness):1.6mm
(Material):
(Housing):Nylon66UL 94V-0
(Wafer) :
(Solder Tabs): (Brass Tin-Plated)
(Pin): (Phos.Bronze Gold-Plating)
(Base):Nylon 6T UL94V-0

>
3.90 0.80

0.50 0.80 1.55 (Wire Range) (O.D of Wire ins) Q ty/reel
Type mm 2 AWG# mm
1.35
TP1001J-3 0.05~0.22 30~24 0.9~1.3 8000PCS
1.60
0.45
>
Dimensions mm
Poles (Type) A B
2 HP1001J-2Y 1.00 5.00
3 HP1001J-3Y 2.00 6.00
4 HP1001J-4Y 3.00 7.00 K
B 5.00 5 HP1001J-5Y 4.00 8.00
A
1.00
>
Dimensions mm
5.00 Poles Part N o. A B
2 HW1001J-2A 1.00 5.00
3 HW1001J-3A 2.00 6.00
4 HW1001J-4A 3.00 7.00
4.20
5 HW1001J-5A 4.00 8.00 Bar connector series

5.40
5.40 0.60 0.9
4.30
1.80 4.00
6.20 1.00
0.85
1.50 A
A 0.10 B
P.C.B. LAYOUT
5.00
