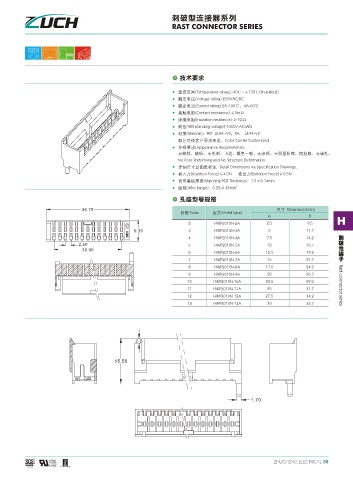

RAST CONNECTOR SERIES RAST CONNECTOR SERIES

> >

(Temperature range):-40 ~+130 (tin-plated) (Temperature range):-40 ~+130 (tin-plated)
(Voltage rating):250V.AC/DC (Voltage rating):250V.AC/DC
(Current rating):2A-100 4A-60 (Current rating):2A-100 4A-60
(Contact resistance): 5m (Contact resistance): 5m
(Insulation resistance): 1G (Insulation resistance): 1G
(Withstanding voltage):1000V.AC.MIN (Withstanding voltage):1000V.AC.MIN
(Material) PBT UL94--V0 PA UL94-V2 (Material) PBT UL94--V0 PA UL94-V2
Color Can Be Customized Color Can Be Customized
(Appearance Requirements) (Appearance Requirements)
No Poor Preforming and No Structure Deformation. No Poor Preforming and No Structure Deformation.
. Detail Dimensions As Specification Drawings. . Detail Dimensions As Specification Drawings.
(Insertion Force) 4.0N (Extration Froce) 0.5N (Insertion Force) 4.0N (Extration Froce) 0.5N
(Matching PCB Thickness) 1.5 0.14mm (Matching PCB Thickness) 1.5 0.14mm
(Wire Range) 0.22-0.38mm 2 (Wire Range) 0.22-0.38mm 2

>
B
>
B 36.70 Poles (Vertial type) Dimensions(mm)
Dimensions(mm) A B
H Poles (Vertial type) A B 2 HWP2010N-2A 2.5 9.5 H
3 HPP2010N-3Y 5 9.9 9.30 3 HWP2010N-3A 5 11.7
5 HPP2010N-5Y 10 14.9 4 HWP2010N-4A 7.5 14.2
7 HPP2010N-7Y 15 19.9 2.50 5 HWP2010N-5A 10 16.7
30.00
9 HPP2010N-9Y 20 24.9 6 HWP2010N-6A 12.5 19.2
11 HPP2010N-11Y 25 29.9 7 HWP2010N-7A 15 21.7
13 HPP2010N-13Y 30 34.9 8 HWP2010N-8A 17.5 24.2
15 HPP2010N-15Y 35 39.9 9 HWP2010N-9A 20 26.7
17 HPP2010N-17Y 40 44.9 10 HWP2010N-10A 22.5 29.2
19 HPP2010N-19Y 45 49.9 11 HWP2010N-11A 25 31.7 Rast connector series
12 HWP2010N-12A 27.5 34.2
13 HWP2010N-13A 30 36.7
Rast connector series
5.3 A

2.0

A-A 15.50

A
B-B
B 0.3
A 0.1
5.0 1.70
2.5 0.05
5.3 0.15

15.5
7.3 0.15

87 ZHUCHENG ELECTRICAL ZHUCHENG ELECTRICAL 88
