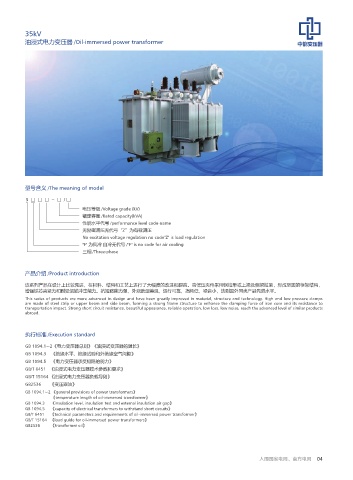

Page 21 - 山东中能变压器制造有限公司

35kV
油浸式电力变压器 /Oil-immersed power transformer

型号含义 /The meaning of model

S □ □ □ - □ / □
电压等级 /Voltage grade (kV)
额定容量 /Rated capacity(kVA)
性能水平代号 /performance level code-name
无励磁调压无代号“Z”为有载调压
No excitation voltage regulation no code"Z" is load regulation
"F" 为风冷 自冷无代号 /"F" is no code for air cooling
三相 /Three-phase

产品介绍 /Product introduction
该系列产品在设计上比较先进，在材料、结构和工艺上进行了大幅度的改进和提高。高低压夹件采用钢拉带或上梁及侧梁拉紧，形成坚固的框架结构，
增强铁芯夹紧力和耐受运输冲击能力。抗短路能力强，外观选型美观，运行可靠，损耗低，噪音小，达到国外同类产品先进水平。
This series of products are more advanced in design and have been greatly improved in material, structure and technology. High and low pressure clamps
are made of steel strip or upper beam and side beam, forming a strong frame structure to enhance the clamping force of iron core and its resistance to
transportation impact. Strong short circuit resistance, beautiful appearance, reliable operation, low loss, low noise, reach the advanced level of similar products
abroad.

执行标准 /Execution standard
GB 1094.1~2《电力变压器总则》《油浸式变压器的温长》
GB 1094.3 《绝缘水平、绝缘试验和外绝缘空气间隙》
GB 1094.5 《电力变压器承受短路的能力》
GB/T 6451 《油浸式电力变压器技术参数和要求》
GB/T 15164 《油浸式电力变压器负载导则》
GB2536 《变压器油》
GB 1094.1~2 《general provisions of power transformers》
《temperature length of oil-immersed transformer》
GB 1094.3 《insulation level, insulation test and external insulation air gap》
GB 1094.5 《capacity of electrical transformers to withstand short circuits》
GB/T 6451 《technical parameters and requirements of oil-immersed power transformer》
GB/T 15164 《load guide for oil-immersed power transformers》
GB2536 《transformer oil》

入围国家电网、南方电网 04
