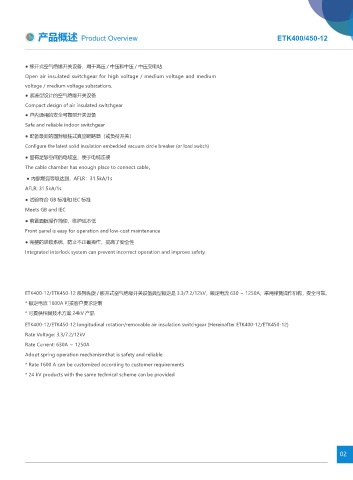

产品概述 Product Overview ETK400/450-12

● 移开式空气绝缘开关设备，用于高压 / 中压和中压 / 中压变电站
Open air insulated switchgear for high voltage / medium voltage and medium
voltage / medium voltage substations.
● 紧凑型设计的空气绝缘开关设备

Compact design of air insulated switchgear
● 户内通用的安全可靠型开关设备
Safe and reliable indoor switchgear
● 配备最新的固封极柱式真空断路器（或负荷开关）
Configure the latest solid insulation embedded vacuum circle breaker (or load switch)
● 留有足够空间的电缆室，便于电缆连接
The cable chamber has enough place to connect cable。

● 内部燃弧等级达到，AFLR：31.5kA/1s
AFLR: 31.5kA/1s
● 试验符合 GB 标准和 IEC 标准
Meets GB and IEC

● 前置面板操作简便，维护成本低
Front panel is easy for operation and low-cost maintenance
● 完整的联锁系统，防止不正确操作，提高了安全性
Integrated interlock system can prevent incorrect operation and improve safety.

ETK400-12/ETK450-12 系列纵旋 / 移开式空气绝缘开关设备典型额定是 3.3/7.2/12kV，额定电流 630 ～ 1250A，采用弹簧操作机构，安全可靠。
* 额定电流 1600A 可按客户要求定制
* 可提供相同技术方案 24kV 产品

ETK400-12/ETK450-12 longitudinal rotation/removable air insulation switchgear (Hereinafter ETK400-12/ETK450-12)
Rate Voltage: 3.3/7.2/12kV
Rate Current: 630A ～ 1250A
Adopt spring operation mechanismthat is safety and reliable
* Rate 1600 A can be customized according to customer requirements
* 24 kV products with the same technical scheme can be provided
