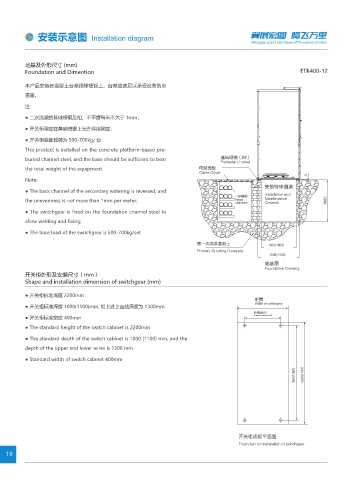

安装示意图 Installation diagram 翼展宏图 腾飞万里
Wingspan grand plan takes off thousands of miles

地基及外形尺寸 (mm)
Foundation and Dimention ETK400-12

本产品安装在混凝土台基预埋槽钢上，台基应该足以承受设备的总
重量。

注：
● 二次浇灌的基础槽钢反扣，不平度每米不大于 1mm；
● 开关柜固定在基础槽钢上允许焊接固定；

● 开关柜基础载荷为 500-700kg/ 台
This product is installed on the concrete platform-based pre-
buried channel steel, and the base should be sufficient to bear ۳ᆩയᨂἷ Ἰ
1FEFTUBM 6 TUFFM
the total weight of the equipment. ႃ፶ᄦ౜
$BCMF $PWFS
Note:
߷ᜉೝξᤰ᥋
● The back channel of the secondary watering is reversed, and
ʷ൓ႃ፶෤ *OTUBMMBUJPO BOE
the unevenness is not more than 1mm per meter; 1SJNBSZ .BJOUFOBODF
$IBOOFM
DBCMF USFODI
● The switchgear is fixed on the foundation channel steel to
allow welding and fixing;
● The base load of the switchgear is 500-700kg/set

ኄʷ൓฻༟ຉіژ
1SJNBSZ (SPVUJOH $PODSFUF

ڡ۳ڏ
'PVOEBUJPO %SBXJOH
开关柜外形及安装尺寸（mm）
Shape and installation dimension of switchgear (mm)

● 开关柜标准高度 2200mm
ಅࠕ
8JEUI PG TXJUDIHFBS
● 开关柜标准深度 1000(1100)mm, 如上进上出线深度为 1300mm
ಅࠕѓ
● 开关柜标准宽度 400mm $BCJOFU SFEVDUJPO
● The standard height of the switch cabinet is 2200mm
● The standard depth of the switch cabinet is 1000 (1100) mm, and the
depth of the upper and lower wires is 1300 mm

● Standard width of switch cabinet 400mm

नТಅअ౜ࣱ᭧ڏ
'MPPS QMBO GPS JOTUBMMBUJPO PG TXJUDIHFBS
