YINGMING POWER

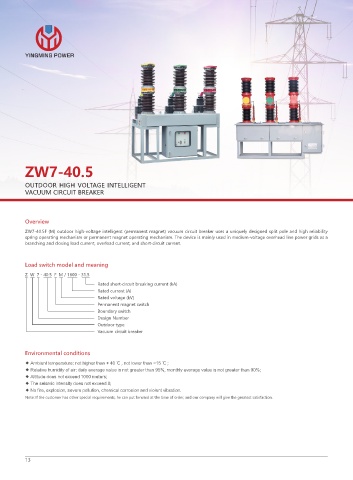

ZW7-40.5

OUTDOOR HIGH VOLTAGE INTELLIGENT
VACUUM CIRCUIT BREAKER

Overview
ZW7-40.5F (M) outdoor high-voltage intelligent (permanent magnet) vacuum circuit breaker uses a uniquely designed split pole and high reliability
spring operating mechanism or permanent magnet operating mechanism. The device is mainly used in medium-voltage overhead line power grids as a
branching and closing load current, overload current, and short-circuit current.

Load switch model and meaning
Z W 7 - 40.5 F M / 1600 - 31.5
Rated short-circuit breaking current (kA)
Rated current (A)
Rated voltage (kV)
Permanent magnet switch
Boundary switch
Design Number
Outdoor type
Vacuum circuit breaker

Environmental conditions
◆ Ambient temperature: not higher than + 40 ℃ , not lower than -15 ℃ ;
◆ Relative humidity of air: daily average value is not greater than 95%, monthly average value is not greater than 90%;
◆ Altitude does not exceed 1000 meters;
◆ The seismic intensity does not exceed 8;
◆ No fire, explosion, severe pollution, chemical corrosion and violent vibration.
Note: If the customer has other special requirements, he can put forward at the time of order, and our company will give the greatest satisfaction.
