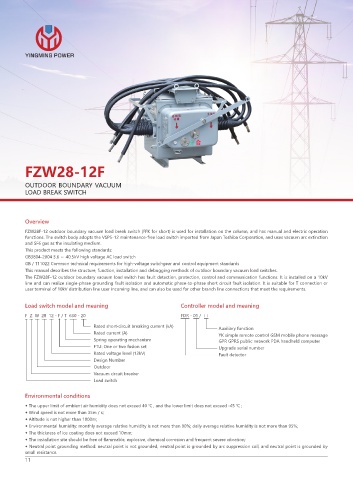

Page 18 - YINGMING POWER(HIGH VOLTAGE)

YINGMING POWER

FZW28-12F

OUTDOOR BOUNDARY VACUUM
LOAD BREAK SWITCH

Overview
FZW28F-12 outdoor boundary vacuum load break switch (FFK for short) is used for installation on the column, and has manual and electric operation
functions. The switch body adopts the VSP5-12 maintenance-free load switch imported from Japan Toshiba Corporation, and uses vacuum arc extinction
and SF6 gas as the insulating medium.
This product meets the following standards:
GB3804-2004 3.6 ～ 40.5kV high voltage AC load switch
GB / T11022 Common technical requirements for high-voltage switchgear and control equipment standards
This manual describes the structure, function, installation and debugging methods of outdoor boundary vacuum load switches.
The FZW28F-12 outdoor boundary vacuum load switch has fault detection, protection, control and communication functions. It is installed on a 10kV
line and can realize single-phase grounding fault isolation and automatic phase-to-phase short circuit fault isolation. It is suitable for T connection or
user terminal of 10kV distribution line user incoming line, and can also be used for other branch line connections that meet the requirements.

Load switch model and meaning Controller model and meaning
F Z W 28 12 - F / T 630 - 20 FDR - 01 / □
Rated short-circuit breaking current (kA) Auxiliary function
Rated current (A) YK simple remote control GSM mobile phone message
Spring operating mechanism GPR GPRS public network PDA handheld computer
FTU: One or two fusion set Upgrade serial number
Rated voltage level (12kV) Fault detector
Design Number
Outdoor
Vacuum circuit breaker
Load switch
Environmental conditions

◆ The upper limit of ambient air humidity does not exceed 40 ℃ , and the lower limit does not exceed -45 ℃ ;
◆ Wind speed is not more than 35m / s;
◆ Altitude is not higher than 1000m;
◆ Environmental humidity: monthly average relative humidity is not more than 90%; daily average relative humidity is not more than 95%;
◆ The thickness of ice coating does not exceed 10mm;
◆ The installation site should be free of flammable, explosive, chemical corrosion and frequent severe vibration;
◆ Neutral point grounding method: neutral point is not grounded, neutral point is grounded by arc suppression coil, and neutral point is grounded by
small resistance.
