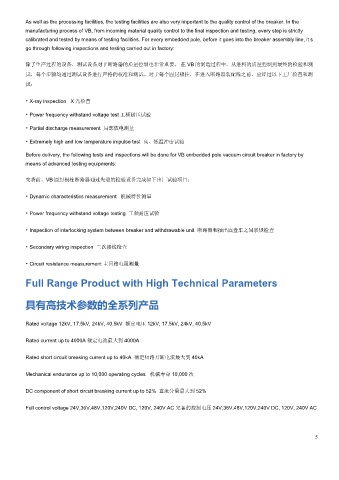

As well as the processing facilities, the testing facilities are also very important to the quality control of the breaker. In the
manufacturing process of VB, from incoming material quality control to the final inspection and testing, every step is strictly
calibrated and tested by means of testing facilities. For every embedded pole, before it goes into the breaker assembly line, it s
go through following inspections and testing carried out in factory:

除了生产过程的设备，测试设备对于断路器的质量控制也非常重要。 在 VB 的制造过程中，从进料的质量控制到最终的检验和测
试，每个步骤均通过测试设备进行严格的校准和测试。对于每个固封极柱，在进入断路器装配线之前，应经过以下工厂检查和测
试：

• X-ray inspection X 光检查

• Power frequency withstand voltage test 工频耐压试验

• Partial discharge measurement 局部放电测量

• Extremely high and low temperature impulse test 高、低温冲击试验

Before delivery, the following tests and inspections will be done for VB embedded pole vacuum circuit breaker in factory by
means of advanced testing equipments:

交货前，VB 固封极柱断路器通过先进的检验设备完成如下出厂试验项目：

• Dynamic characteristics measurement 机械特性测量

• Power frequency withstand voltage testing 工频耐压试验

• Inspection of interlocking system between breaker and withdrawable unit 断路器和抽出底盘车之间联锁检查

• Secondary wiring inspection 二次接线检查

• Circuit resistance measurement 主回路电阻测量

Full Range Product with High Technical Parameters

具有高技术参数的全系列产品

Rated voltage 12kV, 17.5kV, 24kV, 40.5kV 额定电压 12kV, 17.5kV, 24kV, 40.5kV

Rated current up to 4000A 额定电流最大到 4000A

Rated short circuit breaking current up to 40kA 额定短路开断电流最大到 40kA

Mechanical endurance up to 10,000 operating cycles 机械寿命 10,000 次

DC component of short circuit breaking current up to 52% 直流分量最大到 52%

Full control voltage 24V,36V,48V,120V,240V DC, 120V, 240V AC 完备的控制电压 24V,36V,48V,120V,240V DC, 120V, 240V AC
