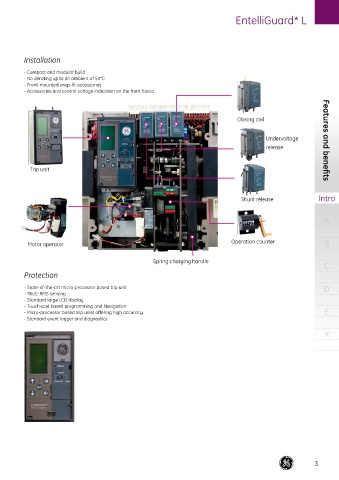

EntelliGuard* L







         Installation

         - Compact and modular build
         - No derating up to an ambient of 50°C
         - Front-mounted snap-fit accessories
         - Accessories and control voltage indication on the front fascia





                                                                                    Closing coil


                                                                                              Undervoltage         Features and benefits
                                                                                              release


            Trip unit





                                                                                      Shunt release              Intro


                                                                                                                   A




           Motor operator                                                         Operation counter                B

                                                       Spring charging handle
                                                                                                                   C
          Protection

          - State-of-the-art micro-processor based trip unit                                                       D
          - TRUE-RMS sensing
          - Standard large LCD display
          - Touch-pad based programming and Navigation
          - Micro-processor based trip units offering high accuracy                                                E
          - Standard event logger and diagnostics
