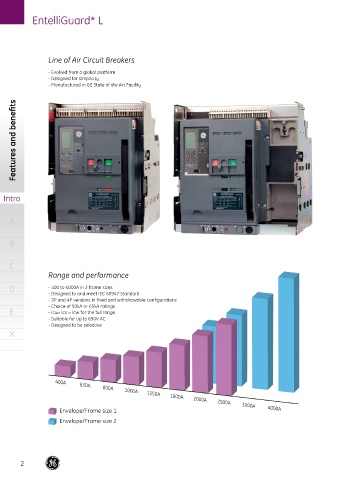

EntelliGuard* L
Line of Air Circuit Breakers
- Evolved from a global platform
- Designed for simplicity
- Manufactured in GE State of the Art Facility
Features and benefits
Intro
A
B
C
Range and performance
D - 400 to 4000A in 2 frame sizes
- Designed to and meet IEC 60947 Standard
- 3P and 4P versions in fixed and withdrawable configurations
- Choice of 50kA or 65kA ratings
E - Icu= Ics = Icw for the full range
- Suitable for up to 690V AC
- Designed to be selective
X
400A
630A
800A
1000A
1250A
1600A
2000A
2500A
3200A
Envelope/Frame size 1 4000A
Envelope/Frame size 2
