P. 10
XGN15 五防联锁机构系列
Five Anti-Interlocking Mechanism Series

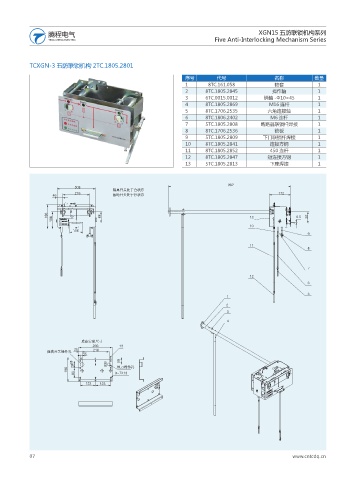

TCXGN-3 五防联锁机构 2TC.1805.2801
序号 代号 名称 数量
1 8TC.161.058 轴套 1
2 8TC.1805.2845 操作轴 1
3 6TC.0015.0012 销轴 -Φ10×45 1
4 8TC.1805.2869 M16 连杆 1
5 8TC.1706.2535 六角连接轴 1
6 8TC.1806.2402 M6 连杆 1
7 5TC.1805.2808 断路器联锁杆焊接 1
8 8TC.1706.2536 锁板 1
9 5TC.1805.2809 下门联锁杆焊接 1
10 8TC.1805.2841 连接方钢 1
11 8TC.1805.2852 450 连杆 1
12 8TC.1805.2847 短连接方钢 1
13 5TC.1805.2813 下座焊接 1
ᬥሎधСܪ̅Ջ࿃খ
ଋڠधСܪ̅ѫ࿃খ
ऄए߶ᜈࡆࠩ
ᬥሎधСୱͺߗ
ڠѧୱͺߗ
9
