低压浇注母线系统      低压浇注母线系统

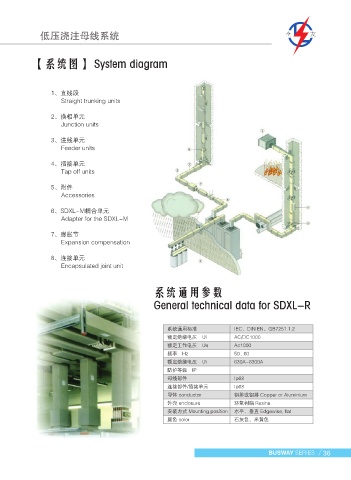

            【系统图】 System diagram

 【产品应用】 Products application


                   1、直线段
                         Straight trunking units

                   2、换相单元
                         Junction units

                   3、进线单元
                         Feeder units
 为石油精炼提供现代化的输配电系统 Modernized power transportation for oil
 refinery          4、插接单元
                         Tap off units
 要 求  Requirements
 为满足现在与未来的安全标准，石化行业的输配  To  meet  current  and  future  safety  standards,  the   5、附件
 realization of the power supply for a petrochemical plant
 电在室内和室外都应要求高等级防护。  required high degrees of protection, both for the indoor         Accessories
 and outdoor applications.
                   6、SDXL-M耦合单元
 解决方案  Solution          Adapter for the SDXL-M
 XL-R系统防护等级IP68实现户外输配电——连接  XL-R system with IP68 for outdoor power transportation
 户外变压器和室内配电屏，可提供经济式试验的  between  outdoor  transformers  and  internal  power   7、膨胀节
 标准连接单元与SD-XL-M系统相连，实现由户外  distribution boards Type-tested standard connection         Expansion compensation
 between the SD-XL-R and SD-XL-M system for further
 到户内的输配电转换。  power distribution inside the building with SD-XL-R
 system.           8、连接单元

 成 效  Result             Encapsulated joint unit
 标准连接部件均通过型式试验确保安全性，防护  Safety through type-tested components, connection
 等级高。安装母线槽系统之间，以及与配电屏的  pieces and high degree of protection easy planning and
 mounting through standard connection components
 连接采用标准连接部件，设计简单，安装快捷，  between  the  busbar  trunking  systems  and  power   系统通用参数
 高度节约成本，属于安全、紧凑的连接方案。  distribution boards Safe, compact and cost-effective   General technical data for SDXL-R
 solution.

 为地铁隧道提供安全配电系统  Safe power distribution in subway tunnel   系统通用标准                 IEC、DIN EN、GB7251.1.2

 要 求  Requirements                                         额定绝缘电压 Ui              AC/DC1000
 地铁区间基础设施排风扇和用电设备对配电系统  A safe power distribution solution was required for the   额定工作电压 Ue  Ac1000
 smoke fans and consumers in the track section of a
 的安全性要求较高，特别是需要提供高等级人身  subway infrastructure. Important factors entailed a high   频率 Hz  50...60
 保护，防止人为破坏。  personal protection and prevention of vandalism.  额定绝缘电压 Ui          630A-6300A
                                                           防护等级 IP
 Solution                                                  母线部件                   Ip68
 解决方案  Consistent application of the XL-R system, functional   连接部件/插接单元          Ip68
 XL-R系统具备应用连贯性，对额外的措施具备持  endurance with additional measures, high degree of
 protection IP68.                                          导体 conductor           铜排或铝排 Copper or Aiuminium
 久的功能，IP68高等级防护。
                                                           外壳 enclosure           环氧树脂 Resina
 Result                                                    安装方式 Mounting position  水平、垂直 Edgewise, flat
 成 效  High availability through maintenance free technology;   颜色 color           石灰色、米黄色
 Minimum  space  requirements  through  compact
 实现免维护；结构紧凑，节省空间；环氧树脂外  dimensions; High resistance through epoxy cast-resin
 壳抵抗力高；实现理想的系统和人身保护。  enclosure ideal personal and system protection.


 35  BUSWAY SERIES                                                                           BUSWAY SERIES      36
