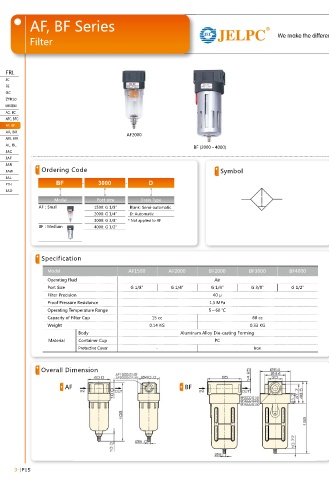

AF,• BF• Series AR,• BR• Series

We make the difference ISO9001:2008
Filter Regulator

FRL FRL
JC JC
FE FE
GC GC
ZYR10 ZYR10
MAR300LK MAR300LK
AC, BC AC, BC
AFC,• BFC AFC,• BFC
AF,• BF
AF,• BF AF,• BF
AR,• BR AR,• BR
AR,• BR
AF2000 BR (2000～4000) AR2000 AR2000
AFR,• BFR AFR,• BFR
AL,• BL AL,• BL
BF• (2000～4000)
JAC JAC
JAF Ordering• Code Symbol JAF
JAR JAR
JAW Ordering• Code Symbol BR - 3000 JAW
JAL JAL
PTH BF - 3000 - D PTH
JAD Model Port• Size JAD
Model Port• size Drain• Type AR：Small 1500: G 1/8″
AF：Small 1500: G 1/8″ Blank:• Semi-automatic 2000: G 1/4″
2000: G 1/4″ D:• Automatic 3000: G 3/8″
BR：Medium 4000: G 1/2″
3000: G 3/8″ *• Not• applied• to• AF
BF：Medium 4000: G 1/2″

Specification Specification
Model AF1500 AF2000 BF2000 BF3000 BF4000 Model AR1500 AR2000 BR2000 BR3000 BR4000
Operating• Fluid Air Operating• Fluid Air
Port• Size G 1/8″ G 1/4″ G 1/4″ G 3/8″ G 1/2″ Port• Size G 1/8″ G 1/4″ G 1/4″ G 3/8″ G 1/2″
Filter• Precision 40 μ Range• of• Adjustable• Pressure 0.05～0.85 MPa
Proof• Pressure• Resistance 1.5• MPa Max.• Adjustable• Pressure 0.95• MPa
Operating• Temperature• Range 5～60 ℃ Proof• Pressure• Resistance 1.5• MPa
Capacity• of• Filter• Cup 15• cc 60• cc Operating• Temperature• Range 5～60 ℃
Weight 0.14• KG 0.33• KG Weight 0.20• KG 0.23• KG
Body Aluminum• Alloy• Die-casting• Forming • • • • Body• Material Aluminum• alloy,• Die-casting• Forming
Material Container• Cup PC
Protective• Cover － Iron
Overall• Dimension

Overall• Dimension AR BR

AF BF

3-|P 15 3-|P 16
