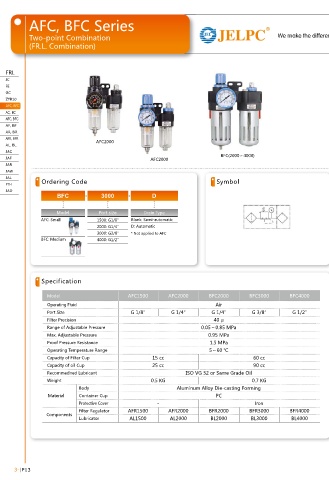

AFC,• BFC• Series AC, BC Series
Two-point• Combination• We make the difference ISO9001:2008 AFC,• BFC• Series
(FR.L.• Combination)

AC,• BC• Series
FRL FRL
JC Overall• Dimension Three-point• Combination• (F.R.L.• Combination) JC
FE FE
GC GC
ZYR10 ZYR10
AFC,• AC MAR300LK
MAR300LK BFC
AC,•
AC, BC AC, BC BC
AFC,• BFC AFC,• BFC
AFC,• BFC
AF,• BF AF,• BF
AR,• BR AR,• BR
AFR,• BFR AFR,• BFR
AFC2000
AL,• BL AL,• BL
JAC JAC
BFC(2000～4000)
JAF AFC2000 JAF
JAR JAR
JAW JAW
JAL JAL
PTH Ordering• Code Symbol PTH
JAD JAD
BFC - 3000 - D BC

Model Port• size Drain• Type
AFC:• Small 1500: G1/8″ Blank:• Semi-automatic
2000: G1/4″ D:• Automatic
3000: G3/8″ *• Not• applied• to• AFC
BFC:• Medium 4000: G1/2″

Specification

Model AFC1500 AFC2000 BFC2000 BFC3000 BFC4000
Operating• Fluid Air AFC,• BFC• Series
Port• Size G 1/8″ G 1/4″ G 1/4″ G 3/8″ G 1/2″ Two-point• Combination• (FR.L.• Combination)
Filter• Precision 40 μ Overall• Dimension
Range• of• Adjustable• Pressure 0.05～0.85 MPa
Max.• Adjustable• Pressure 0.95• MPa
BFC
AFC
Proof• Pressure• Resistance 1.5• MPa AFC BFC
Operating• Temperature• Range 5～60 ℃
Capacity• of• Filter• Cup 15• cc 60• cc
Capacity• of• oil• Cup 25• cc 90• cc
Recommedned• Lubricant ISO• VG• 32• or• Same• Grade• Oil
Weight 0.5• KG 0.7• KG
Body Aluminum• Alloy• Die-casting• Forming
Material Container• Cup PC
Protective• Cover － Iron
Filter• Regulator AFR1500 AFR2000 BFR2000 BFR3000 BFR4000
Components
Lubricator AL1500 AL2000 BL2000 BL3000 BL4000
