产品功能简易选型
Product function simple
selection

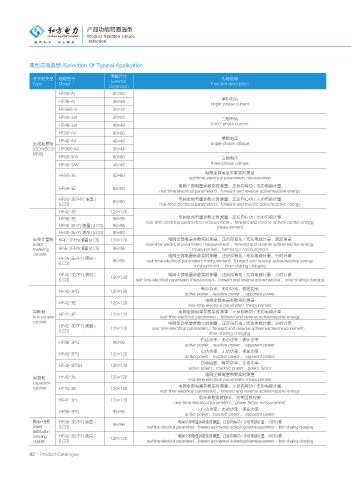

典型应用选型 /Selection Of Typical Application

开关柜类型 规格型号 面框尺寸 功能说明
Type Model External Function description
Dimension
HF80-AI 80×80
单相电流
HF48-AI 48×48 single-phase current
HF96B-AI 96×48
HF80-3AI 80×80 三相电流
HF48-3AI 48×48 three-phase current
HF80-AV 80×80
单相电压
HF48-AV 48×48
出线抽屉柜 single-phase voltage
(GCK/GCS/ HF96B-AV 96×48
MNS)
HF80-3AV 80×80 三相电压
HF48-3AV 48×48 three-phase voltage
电网全部电量参数实时测量
HF80-3E 80×80 real-time electrical parameters measuremen
电网全部电量参数实时测量、正反向有功 / 无功电能计量
HF80-3E 80×80
real-time electrical parameterst、forward and reverse active/reactive energy
HF80-3E/HY( 液晶 ) 电网全部电量参数实时测量、正反向有功 / 无功电能计量
(LCD) 80×80 real-time electrical parameterst、forward and reverse active/reactive energy
HF42-3E 120×120
HF96-3E 96×96 电网全部电量参数实时测量、正反向有功 / 无功电能计量
real-time electrical parameters measurement 、forward and reverse active/reactive energy
HF96-3E/Y( 液晶 )(LCD) 96×96 measurement
HF80-3E/Y( 液晶 )(LCD) 80×80
出线计量柜 HF42-3E/HY( 液晶 )(LCD) 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量、谐波测量
outlet real-time electrical parameters measurement 、forward and reverse active/reactive energy
metering HF96-3E/HY( 液晶 )(LCD) 96×96 measurement、harmonics measurement
cabinet 电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
HF96-3E/FY( 液晶 ) 96×96 real-time electrical parameters measurement、forward and reverse active/reactive energy
(LCD)
measurement 、time-sharing charging
HF42-3E/FY( 液晶 ) 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
(LCD) real-time electrical parameters measurement、forward and reverse active/reactive 、time-sharing charging
有功功率、无功功率、视在功率
HF42-3PQ 120×120
active power、reactive power、 apparent power
电网全部电量参数实时测量
HF42-3E 120×120
real-time electrical parameters measurement
母联柜 HF42-3E 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量
bus coupler real-time electrical parameters、forward and reverse active/reactive energy
cabinet 电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
HF42-3E/FY( 液晶 ) 120×120 real-time electrical parameters、forward and reverse active/reactivemeasurement、
(LCD)
time-sharing charging
有功功率、无功功率、视在功率
HF96-3PQ 96×96
active power、reactive power、 apparent power
有功功率、无功功率、视在功率
HF42-3PQ 120×120 active power、reactive power、 apparent power
功率因数、有功功率、无功功率
HF42-3PQH 120×120
active power、reactive power、power factor
电网全部电量参数实时测量
电容柜 HF42-3E 120×120 real-time electrical parameters measurement
capacitor
cabinet HF42-3E 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量
real-time electrical parameters、forward and reverse active/reactive energy
电量参数实时测量，功率因数控制
HF42-3H 120×120
real-time electrical parameters、power factor measurement
HF96-3PQ 96×96 有功功率、无功功率、视在功率
active power、reactive power、 apparent power
配电计量柜 HF96-3E/FY( 液晶 ) 电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
power (LCD) 96×96 real-time electrical parameters、forward and reverse active/reactivemeasurement 、time-sharing charging
distribution
metering HF42-3E/FY( 液晶 ) 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
cabinet (LCD) real-time electrical parameters、forward and reverse active/reactivemeasurement 、time-sharing charging
02 Product Catalogue
