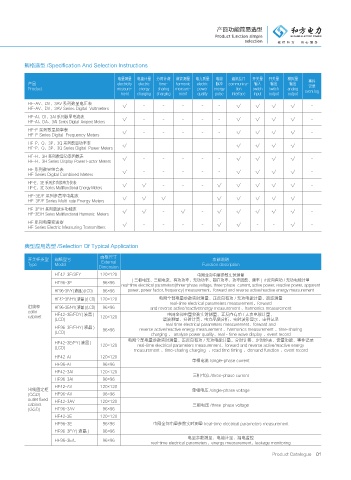

Page 5 - 杭州和方电力设备制造有限公司

产品功能简易选型
Product function simple
selection

规格选型 /Specification And Selection Instructions

电量测量 电能计量 分时计费 谐波测量 电力质量 电能 通讯接口 开关量 开关量 模拟量
产品 electricity electric time- harmonic electric 脉冲 communica- 输入 输出 输出 事件
记录
Product measure- energy sharing measure- power energy tion switch switch analog
ment charging charging ment quality pulse interface input output output event log
HF-AV、DV、3AV 系列数显电压表 √ - - - - - √ √ √ √ -
HF-AV、DV、3AV Series Digital Voltmeters
HF-AI、DI、3AI 系列数显电流表 √ - - - - - √ √ √ √ -
HF-AI、DA、3AI Series Digital Ampere Meters
HF-F 系列数显频率表
HF-F Series Digital Frequency Meters √ - - - - - √ √ √ √ -
HF-P、Q、3P、3Q 系列数显功率表 √ - - - - - √ √ √ √ -
HF-P、Q、3P、3Q Series Digital Power Meters
HF-H、3H 系列数显功率因数表 √ - - - - - √ √ √ √ -
HF-H、3H Series Display Power Factor Meters
HF 系列数显组合表
HF Series Digital Combined Meters √ - - - - - √ √ √ √ -
HF-E、3E 系列多功能电力仪表 √ √ - - - √ √ √ √ √ -
HF-E、3E Series Multifunctional Energy Meters
HF-3E/F 系列多费率电能表 √ √ √ - - √ √ √ √ √ -
HF-3E/F Series Multi-rate Energy Meters
HF-3E/H 系列谐波多功能表
HF-3E/H Series Multifunctional Harmonic Meters √ √ - √ - √ √ √ √ √ -
HF 系列电量变送器 √ - - - - √ √ - - √ -
HF Series Electric Measuring Transmitters

典型应用选型 /Selection Of Typical Application

面框尺寸
开关柜类型 规格型号 External 功能说明
Type Model Function description
Dimension
HF42-3E/3EY 120×120 电网全部电量参数实时测量
( 三相电压、三相电流、有功功率、无功功率、视在功率、功率因数、频率 ) 正反向有功 / 无功电能计量
HF96-3E 96×96
real-time electrical parameters(three-phase voltage, three-phase current, active power, reactive power, apparent
HF96-3E/Y( 液晶 )(LCD) 96×96 power, power factor, frequency) measurement、forward and reverse active/reactive energy measurement
HF42-3E/HY( 液晶 )(LCD) 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量、谐波测量
real-time electrical parameters measurement、forward
进线柜 HF96-3E/HY( 液晶 )(LCD) 96×96 and reverse active/reactiveenergy measurement 、harmonics measurement
coilin HF42-3E/FDY( 液晶 ) 电网全部电量参数实时测量、正反向有功 / 无功电能计量、
cabinet 120×120
(LCD) 谐波测量、分时计费、电力品质分析、实时波形显示、事件记录
real-time electrical parameters measurement、forward and
HF96-3E/FHY( 液晶 ) 96×96 reverse active/reactive energy measurement 、harmonics measurement 、time-sharing
(LCD) charging 、 analyze power quality、real - time wave display 、event record
电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费、定时抄表、需量功能、事件记录
HF42-3E/FY( 液晶 ) 120×120 real-time electrical parameters measurement、forward and reverse active/reactive energy
(LCD)
measurement 、time-sharing charging 、read time timing 、demand function 、event record
HF42-AI 120×120
单相电流 /single-phase current
HF96-AI 96×96
HF42-3AI 120×120
三相电流 /three-phase current
HF96-3AI 96×96
HF42-AV 120×120
出线固定柜 单相电压 /single-phase voltage
(GGD) HF96-AV 96×96
outlet fixed HF42-3AV 120×120
cabinet 三相电压 /three-phase voltage
(GGD) HF96-3AV 96×96
HF42-3E 120×120
HF96-3E 96×96 电网全部电量参数实时测量 /real-time electrical parameters measurement
HF96-3E/Y( 液晶 ) 96×96
电量参数测量、电能计量、漏电监控
HF96-3E/L 96×96
real-time electrical parameters、energy measurement、leakage monitoring
Product Catalogue 01
