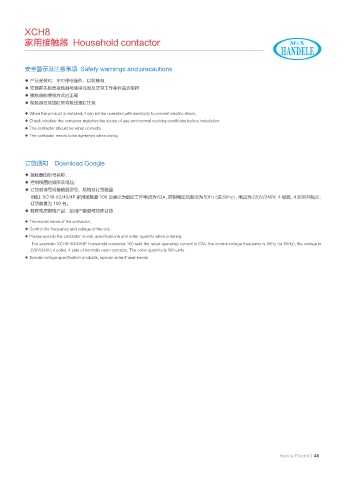

XCH8
家用接触器 Household contactor

安全警示及注意事项 Safety warnings and precautions

◆ 产品安装时，不可带电操作，以防触电
◆ 安装前先检查接触器与使用范围及正常工作条件是否相符
◆ 接触器的接线方式应正确
◆ 接触器在接线时需将接线螺钉拧紧
◆ When the product is installed, it can not be operated with electricity to prevent electric shock.
◆ Check whether the contactor matches the scope of use and normal working conditions before installation.
◆ The contactor should be wired correctly.
◆ The contactor needs to be tightened when wiring

订货须知 Download Google

◆ 接触器的型号名称；
◆ 控制线圈的频率及电压；
◆ 订货时请写明接触器型号、规格及订货数量
例如：XCH8-63/40/4P 家用接触器 100 台表示为额定工作电流为 63A，控制电压的频率为 50Hz（或 60Hz），电压为 220V/240V；4 极数，4 组常开触点，
订货数量为 100 台。
◆ 特殊电压规格产品，如用户需要可特殊订货
◆ The model name of the contactor;
◆ Control the frequency and voltage of the coil;
◆ Please specify the contactor model, specifications and order quantity when ordering.
For example: XCH8-63/40/4P household contactor 100 sets the rated operating current to 63A, the control voltage frequency is 50Hz (or 60Hz), the voltage is
220V/240V; 4 poles, 4 sets of normally open contacts, The order quantity is 100 units.
◆ Special voltage specification products, special order if user needs
