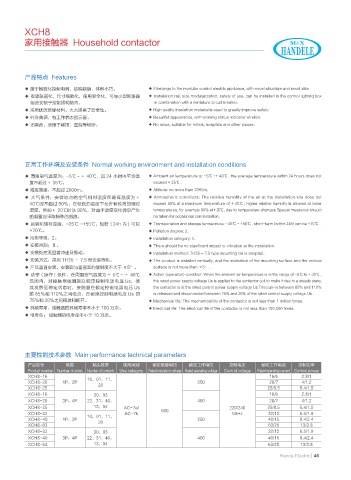

XCH8
家用接触器 Household contactor

产品特点 Features

◆ 属于模数化控制电器，结构新颖，体积小巧。 ◆ It belongs to the modular control electric appliance, with novel structure and small size.
◆ 安装轨道化，尺寸模数化，使用安全化，可与小型断路器 ◆ Installation rail, size modularization, safety of use, can be installed in the control lighting box
组合安装于控制照明箱内。 in combination with a miniature circuit breaker.
◆ 采用优质绝缘材料，大大提高了安全性。 ◆ High quality insulation material is used to greatly improve safety.
◆ 外形美观，有工作状态指示窗。 ◆ Beautiful appearance, with working status indicator window.
◆ 无噪音，适用于宾馆、医院等场所。 ◆ No noise, suitable for hotels, hospitals and other places.

正常工作环境及安装条件 Normal working environment and installation conditions
◆ 周围空气温度为：-5℃～＋ 40℃，其 24 小时内平均温 ◆ Ambient air temperature is: -5℃ ~+ 40℃ , the average temperature within 24 hours does not
度不超过＋ 35℃。 exceed + 35℃ .
◆ 海拔高度：不超过 2000m。 ◆ Altitude: no more than 2000m.
◆ 大气条件：安装地点的空气相对湿度在最高温度为＋ ◆ Atmospheric conditions: The relative humidity of the air at the installation site does not
40℃时不超过 50％；在较低的温度下允许有较高的相对 exceed 50% at a maximum temperature of + 40℃ ; higher relative humidity is allowed at lower
湿度，例如＋ 20℃时达 90％，对由于温度变化偶尔产生 temperatures, for example 90% at + 20℃, due to temperature changes Special measures should
的凝露应采取特殊的措施。 be taken for occasional condensation.
◆ 运输和储存温度：-25℃ ~+55℃，短时（24h 内 ) 可以 ◆ Transportation and storage temperature: -25℃ ~ +55℃ , short-term (within 24h) can be +70℃ .
+70℃。 ◆ Pollution degree: 2.
◆ 污染等级：2。 ◆ Installation category: II.
◆ 安装类别：Ⅱ。 ◆ There should be no significant impact or vibration at the installation.
◆ 安装处应无显著冲击及振动。 ◆ Installation method: TH35 - 7.5 type mounting rail is adopted.
◆ 安装方式：采用 TH35 － 7.5 型安装导轨。 ◆ The product is installed vertically, and the inclination of the mounting surface and the vertical
◆ 产品垂直安装，安装面与垂直面的倾斜度不大于 ±5°。 surface is not more than ±5° .
◆ 动作（操作）条件：在周围空气温度为－ 5℃～＋ 40℃ ◆ Action (operation) condition: When the ambient air temperature is in the range of -5℃ to + 40℃ ,
范围内，对接触器线圈施以额定控制电源电压 Us，使 the rated power supply voltage Us is applied to the contactor coil to make it rise to a steady state,
其发热至稳定状态时，接触器在额定控制电源电压 Us the contactor is at the rated control power supply voltage Us The pull-in between 85% and 110%
的 85％和 110％之间吸合，在额定控制电源电压 Us 的 is released and disconnected between 75% and 20% of the rated control supply voltage Us.
75％和 20％之间释放和断开。 ◆ Mechanical life: The mechanical life of the contactor is not less than 1 million times.
◆ 机械寿命：接触器的机械寿命不小于 100 万次。 ◆ Electrical life: The electrical life of the contactor is not less than 100,000 times.
◆ 电寿命： 接触器的电寿命不小于 10 万次。

主要性能技术参数 Main performance technical parameters
产品型号 极数 触头数量 使用类别 额定绝缘电压 额定工作电压 控制电压 额定工作电流 控制功率
Product number Number of poles Number of contacts Use category Rated insulation voltage Rated operating voltage Control voltage Rated operating current Control power
XCH8-16 10，01，11， 16/6 2.8/1
XCH8-20 1P，2P 20 250 20/7 4/1.2
XCH8-25 25/8.5 5.4/1.5
XCH8-16 30，03 16/6 2.8/1
XCH8-20 3P，4P 22，31，40， 400 20/7 4/1.2
XCH8-25 13，04 AC-7a/ 220/240 25/8.5 5.4/1.5
XCH8-32 10，01，11， AC-7b 500 50Hz 32/12 6.5/1.9
XCH8-40 1P，2P 20 250 40/15 8.4/2.4
XCH8-63 63/25 13/3.8
XCH8-32 30，03 32/12 6.5/1.9
XCH8-40 3P，4P 22，31，40， 400 40/15 8.4/2.4
XCH8-63 13，04 63/25 13/3.8
Handa Electric 46
