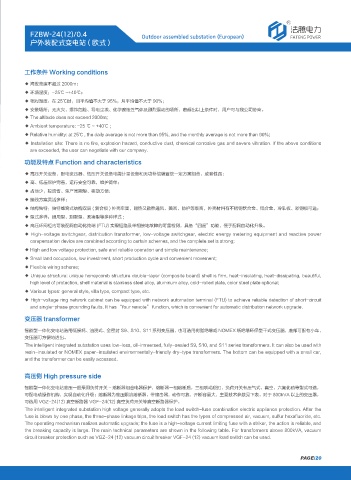

FZBW-24(12)/0.4 Outdoor assembled substation (European) '"5&/( 108&3
户外装配式变电站 ( 欧式 )

工作条件 Working conditions

◆ 海拔高度不超过 2000m；
◆ 环境温度：-25℃ ~+40℃；
◆ 相对湿度：在 25℃时，日平均值不大于 95%，月平均值不大于 90%；
◆ 安装场所：无火灾、爆炸危险、导电尘埃、化学腐蚀性气体及剧烈震动的场所，若超出以上条件时，用户可与我公司协商。
◆ The altitude does not exceed 2000m;
◆ Ambient temperature: -25 ℃ ~ +40℃ ;
◆ Relative humidity: at 25℃ , the daily average is not more than 95%, and the monthly average is not more than 90%;
◆ Installation site: There is no fire, explosion hazard, conductive dust, chemical corrosive gas and severe vibration. If the above conditions
are exceeded, the user can negotiate with our company.
功能及特点 Function and characteristics

◆ 高压开关设备、配电变压器、低压开关设备电能计量设备和无功补偿装置按一定方案组合，成套性强；
◆ 高、低压保护完善，运行安全可靠，维护简单；
◆ 占地少，投资省、生产周期短、移动方便；
◆ 接线方案灵活多样；
◆ 结构独特：独特蜂窝式结构双层 ( 复合板 ) 外壳牢固，隔热又散热通风、美观、防护等级高，外壳材料有不锈钢钦合金、铝合金、冷轧板、彩钢板可选；
◆ 型式多样：通用型、别墅型、紧凑型等多种样式 ;
◆ 高压环网柜内可装配网自动化终端 (FTU) 实现短路及单相接地故障的可靠检测，具备“四遥”功能，便于配网自动化升级。
◆ High-voltage switchgear, distribution transformer, low-voltage switchgear, electric energy metering equipment and reactive power
compensation device are combined according to certain schemes, and the complete set is strong;
◆ High and low voltage protection, safe and reliable operation and simple maintenance;
◆ Small land occupation, low investment, short production cycle and convenient movement;
◆ Flexible wiring scheme;
◆ Unique structure: unique honeycomb structure double-layer (composite board) shell is firm, heat-insulating, heat-dissipating, beautiful,
high level of protection, shell material is stainless steel alloy, aluminum alloy, cold-rolled plate, color steel plate optional;
◆ Various types: general style, villa type, compact type, etc.
◆ High-voltage ring network cabinet can be equipped with network automation terminal (FTU) to achieve reliable detection of short-circuit
and single-phase grounding faults. It has “four remote” function, which is convenient for automatic distribution network upgrade.

变压器 transformer
智能型一体化变电站选用低损耗、油浸式、全密封 S9、S10、S11 系列变压器，也可选用树脂绝缘或 NOMEX 纸绝缘环保型干式变压器，底部可配有小车，
变压器可方便地进出。
The intelligent integrated substation uses low-loss, oil-immersed, fully-sealed S9, S10, and S11 series transformers. It can also be used with
resin-insulated or NOMEX paper-insulated environmentally-friendly dry-type transformers. The bottom can be equipped with a small car,
and the transformer can be easily accessed.

高压侧 High pressure side

智能型一体化变电站高压一般采用负荷开关 - 熔断器组合电器保护，熔断器一相熔断后，三相联动脱扣，负荷开关有压气式、真空、六氟化硫等型式可选，
可配电动操作机构，实现自动化升级；熔断器为高压限流熔断器，带撞击器，动作可靠，开断容量大，主要技术参数见下表。对于 800kVA 以上的变压器，
可选用 VGZ-24(12) 真空断路器 VGF-24(12) 真空负荷开关等真空断路器保护。
The intelligent integrated substation high voltage generally adopts the load switch-fuse combination electric appliance protection. After the
fuse is blown by one phase, the three-phase linkage trips, the load switch has the types of compressed air, vacuum, sulfur hexafluoride, etc.
The operating mechanism realizes automatic upgrade; the fuse is a high-voltage current limiting fuse with a striker, the action is reliable, and
the breaking capacity is large. The main technical parameters are shown in the following table. For transformers above 800kVA, vacuum
circuit breaker protection such as VGZ-24 (12) vacuum circuit breaker VGF-24 (12) vacuum load switch can be used.
