MVG2-12 型高压真空断路器

Type High Voltage Vacuum Circuit Breaker

MVG2

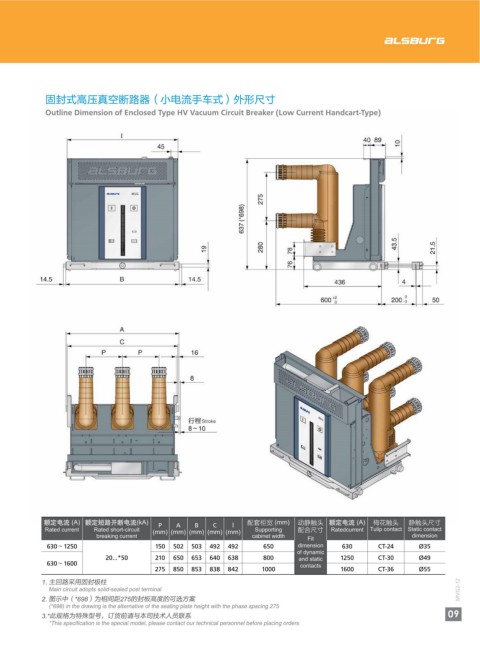

固封式高压真空断路器（小电流手车式）外形尺寸
固封式高压真空断路器（小电流手车式）外形尺寸 固封式高压真空断路器（小电流手车式）外形尺寸
Outline Dimension of Enclosed Type HV Vacuum Circuit Breaker (Low Current Handcart-Type) Outline Dimension of Enclosed Type HV Vacuum Circuit Breaker (Low Current Handcart-Type)

额定电流 (A) 额定短路开断电流(kA) P A B C I 配套柜宽 (mm) 动静触头 额定电流 (A) 梅花触头 静触头尺寸 额定电流 (A) 额定短路开断电流(kA) P A B C I 配套柜宽 (mm) 动静触头 额定电流 (A) 梅花触头 静触头尺寸
Rated current Rated short-circuit (mm) (mm) (mm) (mm) (mm) Supporting 配合尺寸 Ratedcurrent Tulip contact Static contact Rated current Rated short-circuit (mm) (mm) (mm) (mm) (mm) Supporting 配合尺寸 Ratedcurrent Tulip contact Static contact
breaking current cabinet width Fit dimension breaking current cabinet width Fit dimension
630～1250 150 502 503 492 492 650 dimension 630～1250 CT-24 Ø35 630～1250 150 502 503 492 492 650 dimension 630 CT-24 Ø35
of dynamic of dynamic
20...*50 210 650 653 640 638 800 and static 20...*50 210 650 653 640 638 800 and static 1250 CT-30 Ø49
630～1600 contacts 1600 CT-36 Ø55 630～1600 contacts
275 850 853 838 842 1000 275 850 853 838 842 1000 1600 CT-36 Ø55
MVG2-12 1. 主回路采用固封极柱 1. 主回路采用固封极柱 MVG2-12
Main circuit adopts solid-sealed post terminal
Main circuit adopts solid-sealed post terminal
2. 图示中（*698）为相间距275的封板高度的可选方案
(*698) in the drawing is the alternative of the sealing plate height with the phase spacing 275
*This specification is the special model, please contact our technical personnel before placing orders
08 2.*此规格为特殊型号，订货前请与本司技术人员联系 3.*此规格为特殊型号，订货前请与本司技术人员联系 09
*This specification is the special model, please contact our technical personnel before placing orders
