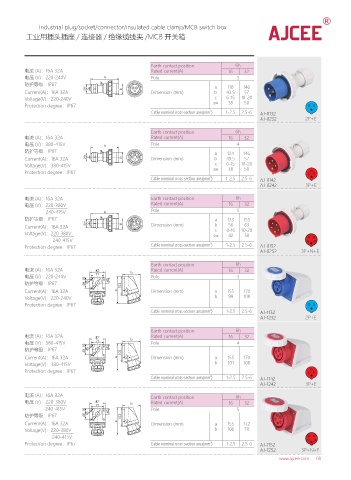

Industrial plug/socket/connector/insulated cable clamp/MCB switch box
          工业用插头插座 / 连接器 / 绝缘缆线夹 /MCB 开关箱





                                                     Earth contact position       6h
          电流 (A):16A 32A                             Rated current(A)           16   32
          电压 (V):220-240V            B               Pole                         3
          防护等级:IP67
                              TX  D        C                               a   118   146
          Current(A):16A 32A                         Dimension (mm)        b   43.5  57
          Voltage(V):220-240V                                              c   6-15  10-20
          Protection degree:IP67                                          sw    38   50
                                                     Cable nominal cross-section area(mm ) 2  1-2.5  2.5-6  AJ-0132
                                                                                           AJ-0232        2P+E

                                                     Earth contact position       6h
          电流 (A):16A 32A                             Rated current(A)           16   32
          电压 (V):380-415V            B               Pole                         4
          防护等级:IP67                                                        a   124   146
          Current(A):16A 32A  TX  D        C         Dimension (mm)        b   49.5  57
          Voltage(V):380-415V                                              c   6-15  10-20
          Protection degree:IP67                                          sw    38   50
                                                     Cable nominal cross-section area(mm ) 2  1-2.5  2.5-6  AJ-0142
                                                                                           AJ-0242        3P+E

          电流 (A):16A 32A                             Earth contact position       6h
          电压 (V):220-380V                            Rated current(A)           16   32
                         240-415V    B               Pole                          5
          防护等级:IP67                                                        a   133   155
          Current(A):16A 32A  TX  D        C         Dimension (mm)        b    56   63
                                                                           c
          Voltage(V):220-380V                                             sw   8-16  10-20
                                                                                     50
                                                                                42
                              240-415V                                   2
          Protection degree:IP67                     Cable nominal cross-section area(mm )  1-2.5  2.5-6  AJ-0152
                                                                                           AJ-0252       3P+N+E
                                                     Earth contact position       6h
          电流 (A):16A 32A                      C      Rated current(A)           16   32
          电压 (V):220-240V                            Pole                          3
          防护等级:IP67               Ÿ
          Current(A):16A 32A     Ÿ       B    c      Dimension (mm)        a   155   170
          Voltage(V):220-240V                                              b    99   108
          Protection degree:IP67
                                                     Cable nominal cross-section area(mm ) 2  1-2.5  2.5-6  AJ-1132
                                                                                           AJ-1232        2P+E
                                                     Earth contact position       6h
          电流 (A):16A 32A                      C      Rated current(A)           16   32
          电压 (V):380-415V                            Pole                          4
          防护等级:IP67               Ÿ
          Current(A):16A 32A     Ÿ       B    c      Dimension (mm)        a   155   170
          Voltage(V):380-415V                                              b   101   108
          Protection degree:IP67
                                                     Cable nominal cross-section area(mm ) 2  1-2.5  2.5-6  AJ-1142
                                                                                           AJ-1242        3P+E
          电流 (A):16A 32A                             Earth contact position       6h
          电压 (V):220-380V                     C      Rated current(A)           16   32
                         240-415V                    Pole                          5
          防护等级:IP67               Ÿ   Ÿ
          Current(A):16A 32A             B    c      Dimension (mm)        a   155   172
          Voltage(V):220-380V                                              b   106   111
                              240-415V
          Protection degree:IP67                     Cable nominal cross-section area(mm ) 2  1-2.5  2.5-6  AJ-1152
                                                                                           AJ-1252       3P+N+E
