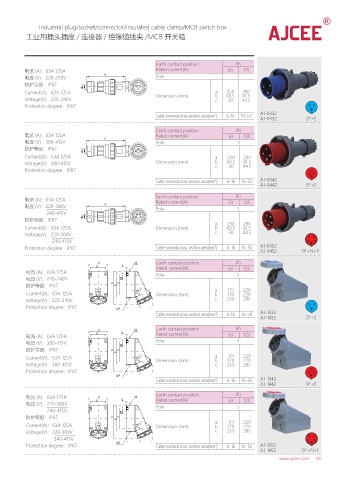

Industrial plug/socket/connector/insulated cable clamp/MCB switch box
          工业用插头插座 / 连接器 / 绝缘缆线夹 /MCB 开关箱




                                                       Earth contact position     6h
          电流 (A):63A 125A                              Rated current(A)        63    125
          电压 (V):220-240V            B                 Pole                        3
          防护等级:IP67           ÐD             C
          Current(A):63A 125A                                              a   250  280
                                                                                    81.5
          Voltage(V):220-240V                          Dimension (mm)      b   69.5  44.5
                                                                               30
                                                                           c
          Protection degree:IP67
                                                       Cable nominal cross-section area(mm ) 2  6-16  16-50  AJ-0332
                                                                                           AJ-0432        2P+E
                                                       Earth contact position     6h
          电流 (A):63A 125A            B                 Rated current(A)         63   125
          电压 (V):380-415V                              Pole                        4
          防护等级:IP67           ÐD             C
          Current(A):63A 125A                                              a   250   280
                                                                                     81.5
          Voltage(V):380-415V                          Dimension (mm)      b c  69.5  44.5
                                                                                30
          Protection degree:IP67
                                                       Cable nominal cross-section area(mm ) 2  6-16  16-50  AJ-0342
                                                                                           AJ-0442        3P+E

                                                       Earth contact position     6h
          电流 (A):63A 125A                              Rated current(A)         63   125
          电压 (V):220-380V            B                 Pole                        5
                          240-415V  ÐD
          防护等级:IP67                          C                             a   250   280
          Current(A):63A 125A                          Dimension (mm)      b   69.5  81.5
          Voltage(V):220-380V                                              c    30   44.5
                              240-415V
          Protection degree:IP67                       Cable nominal cross-section area(mm ) 2  6-16  16-50  AJ-0352
                                                                                           AJ-0452       3P+N+E
                                                       Earth contact position     6h
                                                       Rated current(A)         63   125
          电流 (A):63A 125A                              Pole                        3
          电压 (V):220-240V
          防护等级:IP67
                                                                           a   171   220
          Current(A):63A 125A                          Dimension (mm)      b   170   220
          Voltage(V):220-240V                                              c   250   285
          Protection degree:IP67
                                                       Cable nominal cross-section area(mm ) 2  6-16  16-50  AJ-1332
                                                                                           AJ-1432        2P+E
                                                       Earth contact position     6h
          电流 (A):63A 125A                              Rated current(A)         63   125
          电压 (V):380-415V                              Pole                        4
          防护等级:IP67
          Current(A):63A 125A                          Dimension (mm)      b a  171  220
                                                                               170
                                                                                     220
          Voltage(V):380-415V                                              c   250   285
          Protection degree:IP67
                                                       Cable nominal cross-section area(mm ) 2  6-16  16-50  AJ-1342
                                                                                           AJ-1442        3P+E

          电流 (A):63A 125A                              Earth contact position   63  6h  125
                                                       Rated current(A)
          电压 (V):220-380V                              Pole                        5
                         240-415V
          防护等级:IP67
                                                                           a   171   220
          Current(A):63A 125A                          Dimension (mm)      b   170   220
          Voltage(V):220-380V                                              c   250   285
                              240-415V
          Protection degree:IP67                       Cable nominal cross-section area(mm ) 2  6-16  16-50  AJ-1352
                                                                                           AJ-1452       3P+N+E
