GCK
低压抽出式开关柜
Low-voltage withdrawable switchgear

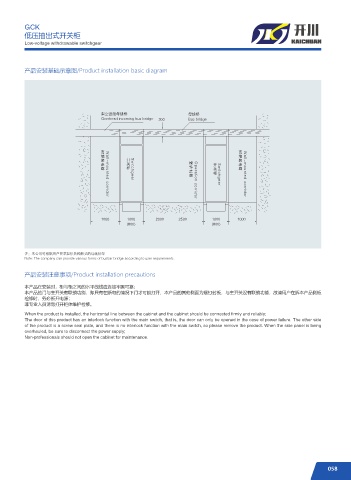

产品安装基础示意图/Product installation basic diagram

᳢⾦䔇㏫⃹㏫ᶑ ⃹㏫ᶑ
0WFSIFBE JODPNJOH CVT CSJEHF #VT CSJEHF

⻧ ⻧
ළ ළ
㷱 㷱
䊜 ڟ ᧹ 䊜
᏶ ᴈ ҈ ڟ ᏶
䊜 ᴈ
᏶ 0QFSBUJPO DPSSJEPS ᐬ 4XJUDIHFBS 8BMM NPVOUFE DPSSJEPS
ᐬ 4XJUDIHFBS

8BMM NPVOUFE DPSSJEPS

注：本公司可根据用户要求提供各种形式的母线桥架
Note: The company can provide various forms of busbar bridge according to user requirements.

产品安装注意事项/Product installation precautions

本产品在安装时，柜与柜之间的水平线线应连接牢固可靠；
本产品的门与主开关有联锁功能，即只有在断电的情况下门才可能打开，本产品的其他侧面为螺钉封板，与主开关没有联锁功能，故请用户在拆本产品侧板
检修时，务必断开电源；
非专业人员请勿打开柜体维护检修。
When the product is installed, the horizontal line between the cabinet and the cabinet should be connected firmly and reliably;
The door of this product has an interlock function with the main switch, that is, the door can only be opened in the case of power failure. The other side
of the product is a screw seal plate, and there is no interlock function with the main switch, so please remove the product. When the side panel is being
overhauled, be sure to disconnect the power supply;
Non-professionals should not open the cabinet for maintenance.
