1.2 WASHER CONNECTOR SERIES
>
(Poles)
(Applicable wires): AWG26#~20#
(Applicable PC board thickness):1.6mm
(Temperature range):-25 ~85
(Voltage rating):250V.Ac/Dc
(Current rating):5A
(Contact resistance): 0.015
(lnsulation resistance): 1000M
(Withsand voltage):500V.Ac/1min
(Material):
(Housing): Nylon UL94V-2
(Wafer) : Nylon UL94V-2
E
(Terminal): (Phos.bronze Tin/plated)
L >
E
W (Wire Range) (Size)(mm) (Tab (Material Q`ty/reel
(Part No.) (Material) Thickness) Thickness) Note
mm 2 AWG# W L E
TP45020G-3 0.5-0.2 20-24 2.2 12 5.2 - 0.25 4500PCS
P.B/Brass

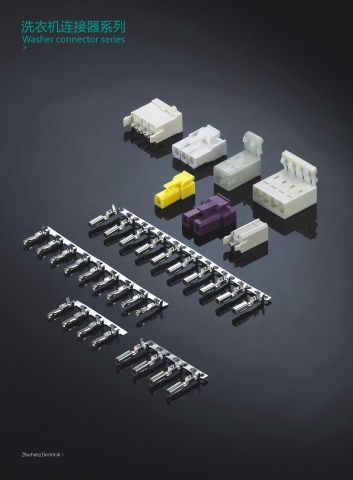

> Washer connector series
(Size)(mm)
T
(Part No.) (Part No.) (Suitable Terminal) (Material)
H D A B F T W H L
L
D
(Nylon)
W HP45020G-2Y - 4.5 - - - 3.7 10.1 5.2 18.8 TP45020G UL94V-0
W
(Size)(mm)
(Part No.) (Part No.) (Suitable Terminal) (Material)
T
D A B F T W H L
HW45020G-2A - 1.2 - - - - 11.1 6.2 17.2 TP45020G (Nylon)
D
L UL94V-0
> 12.2
11.1 6.2
17.2 21.4 1.4
2.4
4.5 2.4
4.5
3.4 3.8 1.9 1.9
2 2 9.3
1.2
Zhucheng Electrical >
