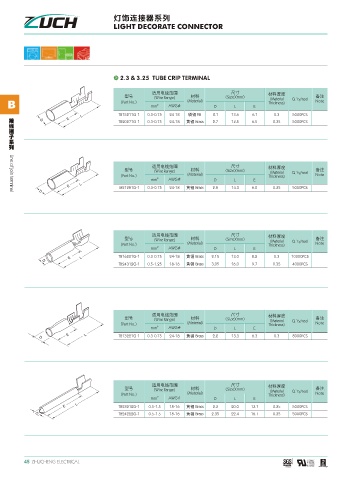

Page 66 - 温州市珠城电气有限公司（2011）

LIGHT DECORATE CONNECTOR LIGHT DECORATE CONNECTOR

>

(Wire Range) (Material) (Size)(mm) (Material Q`ty/reel Note (Wire Range) (Material) (Size)(mm) (Material Q`ty/reel
B (Part No.) mm 2 AWG# D L E Thickness) (Part No.) mm 2 AWG# D L E Thickness) Note B

L TB15211G-1 0.3-0.75 24-18 P.B 2.1 13.6 6.1 0.3 5000PCS E L TB10861G-3 0.2-0.5 24-20 P.B 1.0 8.6 5.6 0.2 5000PCS
E
TB20271G-1 0.3-0.75 24-18 Brass 2.7 14.5 6.5 0.35 5000PCS D
D

D8 D8

(Wire Range) (Size)(mm) (Material Q`ty/reel
(Part No.) (Material) Thickness) Note Line of join terminal
mm 2 AWG# D L E
E L TB21281G-1 0.3-0.75 24-18 Brass 2.8 14.3 6.2 0.35 5000PCS 7.1
D
Line of join terminal
18.0
8.7 13.7
7.5
5.1
1.0

(Wire Range) (Size)(mm) (Material Q`ty/reel
(Part No.) (Material) Thickness) Note (Material) Phosther Bronze (Material) PA66 (Color) (Blue)
mm 2 AWG# D L E
E L TB16221G-1 0.3-0.75 24-18 Brass 2.15 13.0 8.2 0.3 10000PCS
D
TB24312G-1 0.5-1.25 18-16 Brass 3.05 16.0 9.7 0.35 4000PCS

(Wire Range) (Size)(mm) (Material Q`ty/reel
(Part No.) (Material) Thickness) Note
mm 2 AWG# D L E
E L
D TB13221G-1 0.3-0.75 24-18 Brass 2.2 13.3 6.3 0.3 8000PCS

(Wire Range) (Size)(mm) (Material Q`ty/reel
(Part No.) (Material) Thickness) Note
mm 2 AWG# D L E
L
E TB23212G-1 0.5-1.5 18-16 Brass 2.3 20.0 13.7 0.35 5000PCS
TB24222G-1 0.5-1.5 18-16 Brass 2.35 22.4 16.7 0.35 5000PCS
D

45 ZHUCHENG ELECTRICAL ZHUCHENG ELECTRICAL 46
