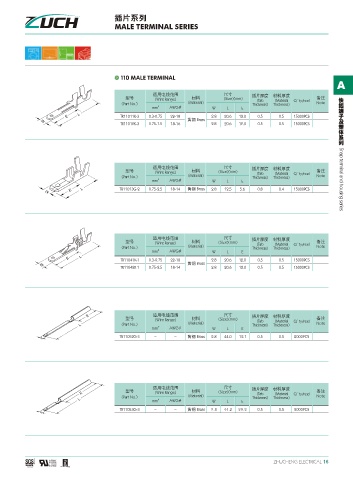

MALE TERMINAL SERIES

>
A

(Wire Range) (Size)(mm) (Tab (Material Q`ty/reel
(Part No.) (Material) Thickness) Thickness) Note
mm 2 AWG# W L E
L
E TR11011K-3 0.3-0.75 22-18 2.8 20.6 12.0 0.5 0.5 15000PCS
Brass
W
TR11012K-3 0.75-1.5 18-16 2.8 20.6 12.0 0.5 0.5 15000PCS

(Wire Range) (Size)(mm) (Tab (Material Q`ty/reel
(Part No.) (Material) Thickness) Thickness) Note
mm 2 AWG# W L E Snap terminal and housing series
E L TR11013G-2 0.75-2.5 18-14 Brass 2.8 12.5 5.6 0.8 0.4 15000PCS
W

(Wire Range) (Size)(mm) (Tab (Material Q`ty/reel
(Part No.) (Material) Thickness) Thickness) Note
mm 2 AWG# W L E
E L
TR11041K-1 0.3-0.75 22-18 2.8 20.6 12.0 0.5 0.5 15000PCS
Brass
W
TR11042K-1 0.75-2.5 18-14 2.8 20.6 12.0 0.5 0.5 15000PCS

E
(Wire Range) (Size)(mm) (Tab (Material Q`ty/reel
L (Part No.) (Material) Thickness) Thickness) Note
mm 2 AWG# W L E
TR11052G-3 Brass 2.8 44.0 12.1 0.5 0.5 2000PCS
W

E (Wire Range) (Size)(mm) (Tab (Material Q`ty/reel
(Part No.) (Material) Note
L Thickness) Thickness)
mm 2 AWG# W L E
TR11053G-3 Brass 2.8 44.2 29.2 0.5 0.5 2000PCS
W
