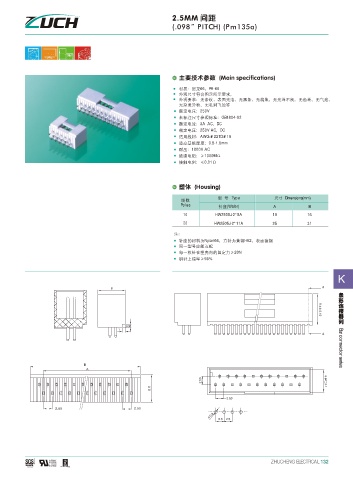

Page 153 - 温州市珠城电气有限公司（2011）

(.098 PITCH) (EH) (.098 PITCH) (Pm135a)

> > >
(Wire range):AWG 30~#24 #32~#28 66 PA-66
(Rated voltage):250V
(Rated current):1A
(Contact resistance): 0.01
250V
(Insulation resistance):1000M
GB1804-92
(Withstanding voltage):1000V.AC
3A AC DC
(Temp range for usage):-25~85
250V AC DC
(P.C board thickness)0.8~1.6mm
AWG #22TO#16
(Metial): 66(PA66)
0.8-1.6mm
(With locking arm):Y
1000V AC
1000M
0.01
>

(Wire Range) (O.D of Wire ins) Q ty/reel
Type 2
5.7 1.0 mm AWG# mm >
2.85 2.05 TP2504J-3(A) 0.032~0.08 32~28 0.5~1.1 7000PCS
TP2504J-3(B) 0.05~0.3 30~22 1.0~1.9 7000PCS Type Dimensions(mm)
2.0 Poles (Wafer) A B
> 10 HW2505J-2*5A 10 16
1.6 22
Size(mm) HW2505J-2*11A 25 31
(Lines) (Type) A B
2 HP2504J-B-2Y 2.5 7.0
3 HP2504J-B-3Y 5.0 9.5 Nyion66 H62
4 HP2504J-B-4Y 7.5 12.0
20N
5 HP2504J-B-5Y 10.0 14.5
95%
6 HP2504J-B-6Y 12.5 17.0
7 HP2504J-B-7Y 15.0 19.5
8 HP2504J-B-8Y 17.5 22.0
K 9 HP2504J-B-9Y 20.0 24.5 K
10 HP2504J-B-10Y 22.5 27.0 8 A
11 HP2504J-B-11Y 25.0 29.5
12 HP2504J-B-12Y 27.5 32.0
13 HP2504J-B-13Y 30.0 34.5 9.4
14 HP2504J-B-14Y 32.5 37.0 0.15
15 HP2504J-B-15Y 35.0 39.5
0.95
1
> A
(Type) Size(mm)
(Lines) (Vertial type) (Curved type) A B Bar connector series
2 HW2504J-B-2A HW2504J-B-2QA 2.5 7.5
3 HW2504J-B-3A HW2504J-B-3QA 5.0 10.0
B
4 HW2504J-B-4A HW2504J-B-4QA 7.5 12.5 A
Bar connector series
5 HW2504J-B-5A HW2504J-B-5QA 10.0 15.0
6 HW2504J-B-6A HW2504J-B-6QA 12.5 17.5 2.50 6.62
7 HW2504J-B-7A HW2504J-B-7QA 15.0 20.0 8.0 0.1
8 HW2504J-B-8A HW2504J-B-8QA 17.5 22.5
2.50
9 HW2504J-B-9A HW2504J-B-9QA 20.0 25.0
10 HW2504J-B-10A HW2504J-B-10QA 22.5 27.5 2.50 2.50
11 HW2504J-B-11A HW2504J-B-11QA 25.0 30.0 0.9
2.5 2.5
12 HW2504J-B-12A HW2504J-B-12QA 27.5 32.5
13 HW2504J-B-13A HW2504J-B-13QA 30.0 35.0
14 HW2504J-B-14A HW2504J-B-14QA 32.5 37.5
15 HW2504J-B-15A HW2504J-B-15QA 35.0 40.0
