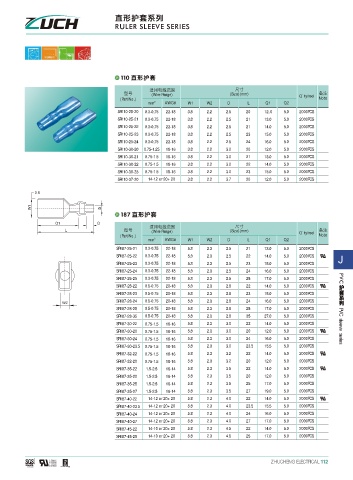

RULER SLEEVE SERIES

>

(Wire Range) (Size)(mm) Q`ty/reel
(Part No.) Note
mm 2 AWG# W1 W2 D L Q1 Q2
SR110-25-20 0.3-0.75 22-18 3.8 2.2 2.5 20 12..0 5.0 2000PCS
SR110-25-21 0.3-0.75 22-18 3.8 2.2 2.5 21 13.0 5.0 2000PCS
SR110-25-22 0.3-0.75 22-18 3.8 2.2 2.5 21 14.0 5.0 2000PCS
SR110-25-23 0.3-0.75 22-18 3.8 2.2 2.5 23 15.0 5.0 2000PCS
SR110-25-24 0.3-0.75 22-18 3.8 2.2 2.5 24 16.0 5.0 2000PCS
SR110-30-20 0.75-1.25 18-16 3.8 2.2 3.0 20 12.0 5.0 2000PCS
SR110-30-21 0.75-1.5 18-16 3.8 2.2 3.0 21 13.0 5.0 2000PCS
SR110-30-22 0.75-1.5 18-16 3.8 2.2 3.0 22 14.0 5.0 2000PCS
SR110-30-23 0.75-1.5 18-16 3.8 2.2 3.0 23 15.0 5.0 2000PCS
SR110-37-20 14-12 or 20+20 3.8 2.2 3.7 20 12.0 5.0 2000PCS

0.8

W1 D
>
Q1 Q
L (Size)(mm)
(Wire Range) Q`ty/reel
(Part No.) Note
mm 2 AWG# W1 W2 D L Q1 Q2
SR187-25-21 0.3-0.75 22-18 5.8 2.3 2.5 21 13.0 5.0 2000PCS
SR187-25-22 0.3-0.75 22-18 5.8 2.3 2.5 22 14.0 5.0 2000PCS J
SR187-25-23 0.3-0.75 22-18 5.8 2.3 2.5 23 15.0 5.0 2000PCS
SR187-25-24 0.3-0.75 22-18 5.8 2.3 2.5 24 16.0 5.0 2000PCS
SR187-25-25 0.3-0.75 22-18 5.8 2.3 2.5 25 17.0 5.0 2000PCS PVC
SR187-28-22 0.5-0.75 20-18 5.8 2.3 2.8 22 14.0 5.0 2000PCS
SR187-28-23 0.5-0.75 20-18 5.8 2.3 2.8 23 15.0 5.0 2000PCS
SR187-28-24 0.5-0.75 20-18 5.8 2.3 2.8 24 16.0 5.0 2000PCS
W2
SR187-28-25 0.5-0.75 20-18 5.8 2.3 2.8 25 17.0 5.0 2000PCS
SR187-28-35 0.5-0.75 20-18 5.8 2.3 2.8 35 27.0 5.0 2000PCS
SR187-30-22 0.75-1.5 18-16 5.8 2.3 3.0 22 14.0 5.0 2000PCS PVC sleeve series
SR187-30-20 0.75-1.5 18-16 5.8 2.3 3.0 20 12.0 5.0 2000PCS
SR187-30-24 0.75-1.5 18-16 5.8 2.3 3.0 24 16.0 5.0 2000PCS
SR187-30-23.5 0.75-1.5 18-16 5.8 2.3 3.0 23.5 15.5 5.0 2000PCS
SR187-32-22 0.75-1.5 18-16 5.8 2.3 3.2 22 14.0 5.0 2000PCS
SR187-32-20 0.75-1.5 18-16 5.8 2.3 3.2 20 12.0 5.0 2000PCS
SR187-35-22 1.5-2.5 16-14 5.8 2.3 3.5 22 14.0 5.0 2000PCS
SR187-35-20 1.5-2.5 16-14 5.8 2.3 3.5 20 12.0 5.0 2000PCS
SR187-35-25 1.5-2.5 16-14 5.8 2.3 3.5 25 17.0 5.0 2000PCS
SR187-35-27 1.5-2.5 16-14 5.8 2.3 3.5 27 19.0 5.0 2000PCS
SR187-40-22 14-12 or 20+20 5.8 2.3 4.0 22 14.0 5.0 2000PCS
SR187-40-23.5 14-12 or 20+20 5.8 2.3 4.0 23.5 15.5 5.0 2000PCS
SR187-40-24 14-12 or 20+20 5.8 2.3 4.0 24 16.0 5.0 2000PCS
SR187-40-27 14-12 or 20+20 5.8 2.3 4.0 27 17.0 5.0 2000PCS
SR187-45-22 14-10 or 20+20 5.8 2.3 4.5 22 14.0 5.0 2000PCS
SR187-45-25 14-10 or 20+20 5.8 2.3 4.5 25 17.0 5.0 2000PCS
