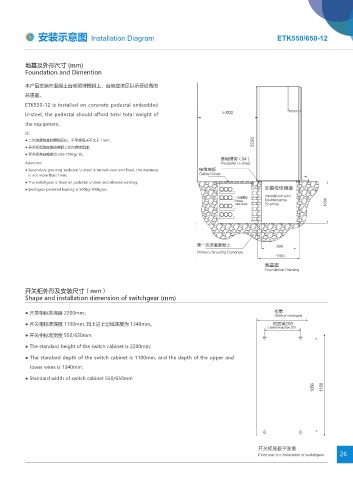

安装示意图 Installation Diagram                                                       ETK550/650-12




          地基及外形尺寸 (mm)
          Foundation and Dimention

          本产品安装在混凝土台基预埋槽钢上,台基应该足以承受设备的
          总重量。
          ETK550-12 is installed on concrete pedestal embedded
          U-steel, the pedestal should afford total total weight of         ĺ
          the equipment.

          注:
          ● 二次浇灌的基础槽钢反扣,不平度每米不大于 1mm;
          ● 开关柜固定在基础槽钢上允许焊接固定;
          ● 开关柜基础载荷为 500-700kg/ 台。
                                                                            ۳ᆩയᨂἷ  Ἰ
          Attention:                                                        1FEFTUBM 6 TUFFM
          ● Secondary grouting pedestal U-steel is turned over and fixed, the waviness   ႃ፶ᄦ౜
           is not more than 1mm;                                    $BCMF $PWFS
          ● The switchgear is fixed on pedestal U-steel and allowed welding:
          ● Swithgear pedestal loading is 500kg-700kg/pc.                                 ߷ᜉೝξᤰ᥋
                                                                                          *OTUBMMBUJPO BOE
                                                                                ʷ൓ႃ፶෤
                                                                                1SJNBSZ   .BJOUFOBODF
                                                                                DBCMF USFODI  $IBOOFM





                                                                   ኄʷ൓฻༟ຉіژ
                                                                   1SJNBSZ (SPVUJOH $PODSFUF


                                                                                          ڡ۳ڏ
                                                                                          'PVOEBUJPO %SBXJOH

          开关柜外形及安装尺寸(mm)
          Shape and installation dimension of switchgear (mm)

          ● 开关柜标准高度 2200mm;                                                                   ಅࠕ
                                                                                              8JEUI PG TXJUDIHFBS
          ● 开关柜标准深度 1100mm, 如上进上出线深度为 1340mm。                                                ಅࠕѓ
                                                                                           $BCJOFU SFEVDUJPO
          ● 开关柜标准宽度 550/650mm
          ● The standard height of the switch cabinet is 2200mm;
          ● The standard depth of the switch cabinet is 1100mm, and the depth of the upper and
           lower wires is 1340mm.

          ● Standard width of switch cabinet 550/650mm












                                                                                        नТಅअ౜ࣱ᭧ڏ
 25                                                                                     'MPPS QMBO GPS JOTUBMMBUJPO PG TXJUDIHFBS  26
