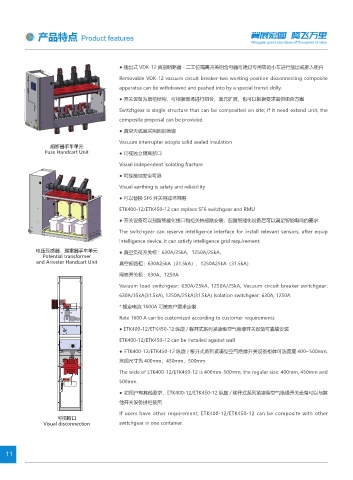

产品特点 Product features 翼展宏图 腾飞万里
Wingspan grand plan takes off thousands of miles

● 抽出式 VDK-12 真空断路器 - 二工位隔离开关组合电器可通过专用转运小车进行抽出或推入柜内
Removable VDK-12 vacuum circuit breaker-two working position disconnecting composite
apparatus can be withdrawed and pushed into by a special transit dolly.
● 开关设备为单柜结构，可根据现场进行组合，单元扩展，也可以根据要求提供组合方案
Switchgear is single structure that can be composited on site; if it need extend unit, the
composite proposal can be provided.

● 真空灭弧室采用固封绝缘
Vacuum interrupter adopts solid sealed insulation
熔断器手车单元
Fuse Handcart Unit ● 可视独立隔离断口

Visual independent isolating fracture
● 可视接地安全可靠

Visual earthing is safety and reliability
● 可以替换 SF6 开关柜或环网柜
ETK400-12/ETK450-12 can replace SF6 switchgear and RMU

● 开关设备可以预留智能化接口和相关传感器安装，配置智能化设备后可以满足智能电网的要求
The switchgear can reserve intelligence interface for install relevant sensors, after equip
intelligence device, it can satisfy intelligence grid requirement.
电压互感器、避雷器手车单元 ● 真空负荷开关柜：630A/25kA、1250A/25kA，
Potential transformer
and Arrester Handcart Unit 真空断路柜：630A25kA（31.5kA）、1250A25kA（31.5kA）

隔离开关柜：630A、1250A

Vacuum load switchgear: 630A/25kA, 1250A/25kA, Vacuum circuit breaker switchgear:
630A/35kA(31.5kA), 1250A/25kA(31.5kA) Isolation switchgear: 630A, 1250A
* 额定电流 1600A 可按客户要求定制
Rate 1600 A can be customized according to customer requirements
● ETK400-12/ETK450-12 纵旋 / 移开式系列紧凑型空气绝缘开关设备可靠墙安装

ETK400-12/ETK450-12 can be installed against wall
● ETK400-12/ETK450-12 纵旋 / 移开式系列紧凑型空气绝缘开关设备柜体可选宽度 400~500mm,
常规尺寸为 400mm、450mm、500mm

The wide of ETK400-12/ETK450-12 is 400mm-500mm, the regular size: 400mm, 450mm and
500mm.
● 如用户有其他要求，ETK400-12/ETK450-12 纵旋 / 移开式系列紧凑型空气绝缘开关设备可以与其
他开关设备拼柜使用
If users have other requirement, ETK400-12/ETK450-12 can be composite with other
可视断口
Visual disconnection switchgear in one container.

11 12
