YINGMING POWER

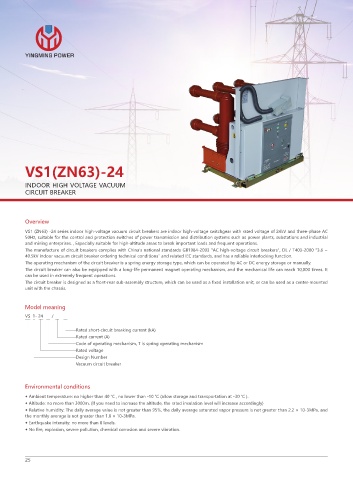

VS1(ZN63)-24

INDOOR HIGH VOLTAGE VACUUM
CIRCUIT BREAKER

Overview
VS1 (ZN63) -24 series indoor high-voltage vacuum circuit breakers are indoor high-voltage switchgear with rated voltage of 24kV and three-phase AC
50Hz, suitable for the control and protection switches of power transmission and distribution systems such as power plants, substations and industrial
and mining enterprises. , Especially suitable for high-altitude areas to break important loads and frequent operations.
The manufacture of circuit breakers complies with China's national standards GB1984-2003 "AC high-voltage circuit breakers", DL / T403-2000 "3.6 ~
40.5kV indoor vacuum circuit breaker ordering technical conditions" and related IEC standards, and has a reliable interlocking function.
The operating mechanism of the circuit breaker is a spring energy storage type, which can be operated by AC or DC energy storage or manually.
The circuit breaker can also be equipped with a long-life permanent magnet operating mechanism, and the mechanical life can reach 10,000 times. It
can be used in extremely frequent operations.
The circuit breaker is designed as a front-rear sub-assembly structure, which can be used as a fixed installation unit, or can be used as a center-mounted
unit with the chassis.

Model meaning
VS 1- 24 ´Ḥ/ ´ḤḤ´

Rated short-circuit breaking current (kA)
Rated current (A)
Code of operating mechanism, T is spring operating mechanism
Rated voltage
Design Number
Vacuum circuit breaker

Environmental conditions
◆ Ambient temperature: no higher than 40 ℃ , no lower than -10 ℃ (allow storage and transportation at -30 ℃ ).
◆ Altitude: no more than 3000m. (If you need to increase the altitude, the rated insulation level will increase accordingly)
◆ Relative humidity: The daily average value is not greater than 95%, the daily average saturated vapor pressure is not greater than 2.2 × 10-3MPa, and
the monthly average is not greater than 1.8 × 10-3MPa.
◆ Earthquake intensity: no more than 8 levels.
◆ No fire, explosion, severe pollution, chemical corrosion and severe vibration.

25
