YINGMING POWER

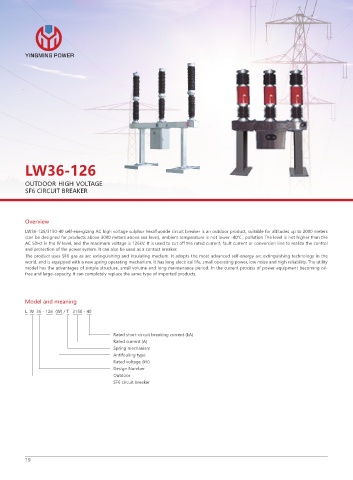

LW36-126

OUTDOOR HIGH VOLTAGE
SF6 CIRCUIT BREAKER

Overview
LW36-126/3150-40 self-energizing AC high voltage sulphur hexafluoride circuit breaker is an outdoor product, suitable for altitudes up to 2000 meters
(can be designed for products above 3000 meters above sea level), ambient temperature is not lower -40℃ , pollution The level is not higher than the
AC 50Hz in the IV level, and the maximum voltage is 126kV. It is used to cut off the rated current, fault current or conversion line to realize the control
and protection of the power system. It can also be used as a contact breaker.
The product uses SF6 gas as arc extinguishing and insulating medium. It adopts the most advanced self-energy arc extinguishing technology in the
world, and is equipped with a new spring operating mechanism. It has long electrical life, small operating power, low noise and high reliability. The utility
model has the advantages of simple structure, small volume and long maintenance period. In the current process of power equipment becoming oil-
free and large-capacity, it can completely replace the same type of imported products.

Model and meaning
L W 36 - 126 (W) / T 3150 - 40

Rated short-circuit breaking current (kA)
Rated current (A)
Spring mechanism
Antifouling type
Rated voltage (kV)
Design Number
Outdoor
SF6 circuit breaker

19
