YINGMING POWER

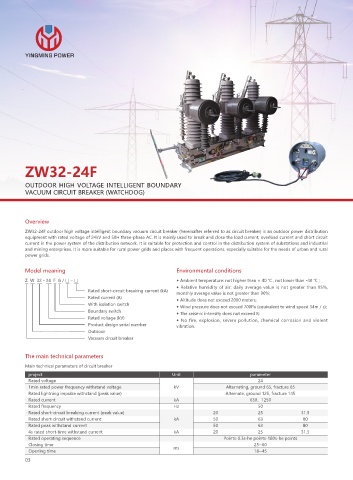

ZW32-24F

OUTDOOR HIGH VOLTAGE INTELLIGENT BOUNDARY
VACUUM CIRCUIT BREAKER (WATCHDOG)

Overview
ZW32-24F outdoor high voltage intelligent boundary vacuum circuit breaker (hereinafter referred to as circuit breaker) is an outdoor power distribution
equipment with rated voltage of 24kV and 50H three-phase AC. It is mainly used to break and close the load current, overload current and short circuit
current in the power system of the distribution network. It is suitable for protection and control in the distribution system of substations and industrial
and mining enterprises. It is more suitable for rural power grids and places with frequent operations, especially suitable for the needs of urban and rural
power grids.

Model meaning Environmental conditions
Z W 32 - 24 F G / □-□ ◆ Ambient temperature: not higher than + 40 ℃ , not lower than -40 ℃ ;
◆ Relative humidity of air: daily average value is not greater than 95%,
Rated short-circuit breaking current (kA) monthly average value is not greater than 90%;
Rated current (A) ◆ Altitude does not exceed 2000 meters;
With isolation switch ◆ Wind pressure does not exceed 700Pa (equivalent to wind speed 34m / s);
Boundary switch ◆ The seismic intensity does not exceed 8;
Rated voltage (kV) ◆ No fire, explosion, severe pollution, chemical corrosion and violent
Product design serial number vibration.
Outdoor
Vacuum circuit breaker

The main technical parameters
Main technical parameters of circuit breaker
project Unit parameter
Rated voltage 24
1min rated power frequency withstand voltage kV Alternating, ground 65, fracture 65
Rated lightning impulse withstand (peak value) Alternate, ground 125, fracture 145
Rated current kA 630、1250
Rated frequency Hz 50
Rated short-circuit breaking current (peak value) 20 25 31.5
Rated short-circuit withstand current kA 50 63 80
Rated peak withstand current 50 63 80
4s rated short-time withstand current kA 20 25 31.5
Rated operating sequence Points-0.3s-he points-180s-he points
Closing time ms 25~60
Opening time 18~45
