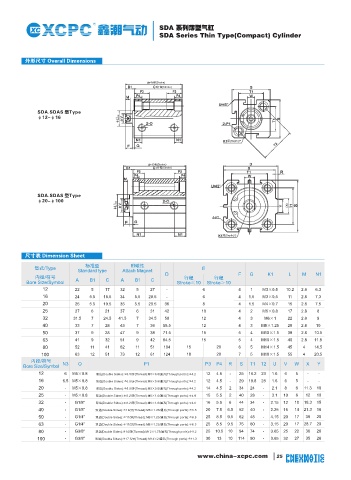

Page 39 - 奉化市鑫潮自动化元件有限公司

R SDA 系列薄型气缸 R SDA 系列薄型气缸
XC XC
SDA Series Thin Type(Compact) Cylinder SDA Series Thin Type(Compact) Cylinder

规格 Specification 外形尺寸 Overall Dimensions

内径/Bore(mm) 12 16 20 25 32 40 50 63 80 100
复动型 / Double Acting
动作形式/Motion Pattern 行程(Stroke)
单动押出型 单动引入型/Single Action Extrusion type Single Action Drawing-in Type -
行程(Stroke)
工作介质/Working Medium 空气/Air
使用压力范围/ 复动型/Double Action 0.1~0.9MPa
Operating Pressure Range 单动型/Single Action 0.2~0.9MPa -
SDA.SDAS 型Type
保证耐压力/Ensured Pressure Resistance 1.35MPa
φ 12- 16
φ
使用温度范围/Operating Temperature Range -5~70℃
使用速度范围/ 复动型/Double Action 30~500mm/s 30~350mm/s 30~250mm/s
Operating Speed Range 单动型/Single Action 100~500mm/s -
缓冲型式/Buffer Type 固定缓冲/Fixed Type Buffer 深(Depth) E
接管口径 /Port Size M5×0.8 G1/8" G1/4" G3/8"
行程 Stroke 行程(Stroke)
行程(Stroke)
内径/Bore(mm) 12 16 20 25 32 40 50 63 80 100
不附磁/ 5~60 mm 每5mm一级 5~85 mm 每5mm一级 5~90 mm 每5mm一级 100~110 mm 每5mm一级 5~90 mm 每5mm一级 100~130mm 每5mm一级
Not attach Every 5mm Every 5mm Every 5mm Every 5mm Every 5mm Every 5mm
复动型/ magnet is grouped as one grade is grouped as one grade is grouped as one grade is grouped as one grade is grouped as one grade is grouped as one grade
Double
Action 附磁型/ 5~50 mm 每5mm一级 5~75mm 每5mm一级 5~90 mm 每5mm一级 5~90 mm 每5mm一级 100~120 mm 每5mm一级 SDA.SDAS 型Type
Attach Every 5mm Every 5mm Every 5mm 100mm Every 5mm Every 5mm
φ
magnet is grouped as one grade is grouped as one grade is grouped as one grade is grouped as one grade is grouped as one grade φ 20- 100
不附磁/ 5~30 mm
Not attach 每5mm一级 5~30 mm 每5mm -
一级
Every 5mm
单动型/ magnet Every 5mm is grouped as one grade is grouped as one grade 4-P1
Single
Action 附磁型/ 5~30 mm 5~30 mm 每5mm
Attach 每5mm一级 一级 Every 5mm -
magnet Every 5mm is grouped as one grade is grouped as one grade
深(Depth) E
最大行程/Max.Stroke 60mm 100mm 120mm 130mm
外牙尺寸 Outer Thread Dimension
尺寸表 Dimension Sheet
+单动常出行程 (Single acting Stroke)
+单动常出行程(Single acting Stroke) 标准型 附磁性
+单动常出行程 (Single acting Stroke) 型式/Type E
+单动常出行程 (Single acting Stroke) Standard type Attach Magnet
+单动常出行程 (Single acting Stroke) D F G K1 L M N1
+单动常出行程 (Single acting Stroke) 内径/符号 行程 行程
Bore Size/Symbol A B1 C A B1 C Stroke≤10 Stroke＞10
12 22 5 17 32 5 27 - 6 4 1 M3×0.5 10.2 2.8 6.3
16 24 5.5 18.5 34 5.5 28.5 - 6 4 1.5 M3×0.5 11 2.8 7.3
20 25 5.5 19.5 35 5.5 29.5 36 8 4 1.5 M4×0.7 15 2.8 7.5
φ12~φ16 φ20~φ100
25 27 6 21 37 6 31 42 10 4 2 M5×0.8 17 2.8 8
32 31.5 7 24.5 41.5 7 34.5 50 12 4 3 M6×1 22 2.8 9
K2 40 33 7 28 43 7 36 58.5 12 4 3 M8×1.25 28 2.8 10
2面幅 K2
(2Side’sBreadth) 2面幅 50 37 9 28 47 9 38 71.5 15 5 4 M10×1.5 38 2.8 10.5
(2Side’sBreadth) 63 41 9 32 51 9 42 84.5 15 5 4 M10×1.5 40 2.8 11.8
M M
80 52 11 41 62 11 51 104 15 20 6 5 M14×1.5 45 4 14.5
尺寸表 Dimension Sheet 100 63 12 51 73 12 61 124 18 20 7 5 M18×1.5 55 4 20.5
内径/符号
缸径/行程 Bore/Symbol B2 E F G H I J K2 L M V W Bore Size/Symbol N3 O P1 P3 P4 R S T1 T2 U V W X Y
12 17 16 4 1 10 8 4 M5×0.8 10.2 2.8 6 5 12 6 M5×0.8 双边(Double Sides):Φ6.5/牙(Thread):M5×0.8/通孔(Through ports):Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 17.5 16 4 1.5 10 8 4 M5×0.8 11 2.8 6 5 16 6.5 M5×0.8 双边(Double Sides):Φ6.5/牙(Thread):M5×0.8/通孔(Through ports):Φ4.2 12 4.5 - 29 19.8 28 1.6 6 5 - -
20 20.5 19 4 1.5 13 10 5 M6×1.0 16 2.8 8 6 20 - M5×0.8 双边(Double Sides):Φ6.5/牙(Thread):M5×0.8/通孔(Through ports):Φ4.2 14 4.5 2 34 24 - 2.1 8 6 11.3 10
25 23 21 4 2 15 12 6 M8×1.25 17 2.8 10 8 25 - M5×0.8 双边(Double Sides):Φ8.2/牙(Thread):M6×1.0/通孔(Through ports):Φ4.6 15 5.5 2 40 28 - 3.1 10 8 12 10
32 25 22 4 3 15 17 6 M10×1.25 22 2.8 12 10 32 - G1/8" 双边(Double Sides):Φ8.2/牙(Thread):M6×1.0/通孔(Through ports):Φ4.6 16 5.5 6 44 34 - 2.15 12 10 18.3 15
40 35 32 4 3 25 19 8 M14×1.5 28 2.8 16 14 40 - G1/8" 双边(Double Sides):Φ10/牙(Thread):M8×1.25/通孔(Through ports):Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16
50 37 33 5 4 25 27 11 M18×1.5 38 2.8 20 17 50 - G1/4" 双边(Double Sides):Φ11/牙(Thread):M8×1.25/通孔(Through ports):Φ6.5 25 8.5 9.5 62 48 - 4.15 20 17 30 20
63 37 33 5 4 25 27 11 M18×1.5 40 2.8 20 17 63 - G1/4" 双边(Double Sides):Φ11/牙(Thread):M8×1.25/通孔(Through ports):Φ6.5 25 8.5 9.5 75 60 - 3.15 20 17 28.7 20
80 44 39 6 5 30 32 13 M22×1.5 45 4 25 22 80 - G3/8" 双边(Double Sides):Φ14/牙(Thread):M12×1.75/通孔(Through ports):Φ9.2 25 10.5 10 94 74 - 3.65 25 22 36 26
100 50 45 7 5 35 36 13 M26×1.5 55 4 32 27 100 - G3/8" 双边(Double Sides):Φ17.5/牙(Thread):M14×2/通孔(Through ports):Φ11.3 30 13 10 114 90 - 3.65 32 27 35 26
