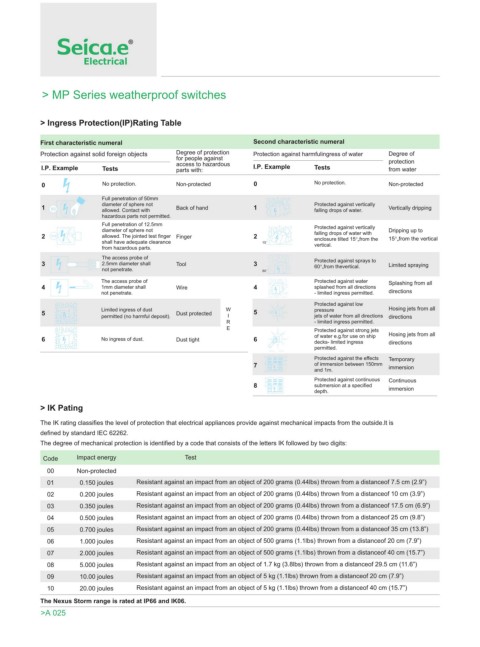

> MP Series weatherproof switches

> Ingress Protection(IP)Rating Table

First characteristic numeral Second characteristic numeral
Protection against solid foreign objects Degree of protection Protection against harmfulingress of water Degree of
for people against protection
access to hazardous
I.P. Example Tests parts with: I.P. Example Tests from water
0 No protection. Non-protected 0 No protection. Non-protected
Full penetration of 50mm
1 diameter of sphere not Back of hand 1 Protected against vertically Vertically dripping
allowed. Contact with
falling drops of water.
hazardous parts not permitted.
Full penetration of 12.5mm
diameter of sphere not Protected against vertically Dripping up to
2 allowed. The jointed test finger Finger 2 falling drops of water with 15°„from the vertical
shall have adequate clearance enclosure tilted 15°„from the
vertical.
from hazardous parts.
The access probe of
3 2.5mm diameter shall Tool 3 Protected against sprays to Limited spraying
not penetrate. 60°„from thevertical.
The access probe of Protected against water Splashing from all
4 1mm diameter shall Wire 4 splashed from all directions
not penetrate. - limited ingress permitted. directions
Protected against low
Limited ingress of dust W pressure Hosing jets from all
5 permitted (no harmful deposit). Dust protected I 5 jets of water from all directions directions
R - limited ingress permitted.
E Protected against strong jets
of water e.g.for use on ship Hosing jets from all
6 No ingress of dust. Dust tight 6 decks- limited ingress directions
permitted.
Protected against the effects Temporary
7 of immersion between 150mm immersion
and 1m.
Protected against continuous Continuous
8 submersion at a specified
depth. immersion
> IK Pating

The IK rating classifies the level of protection that electrical appliances provide against mechanical impacts from the outside.lt is
defined by standard IEC 62262.
The degree of mechanical protection is identified by a code that consists of the letters IK followed by two digits:
Code lmpact energy Test
00 Non-protected
01 0.150 joules Resistant against an impact from an object of 200 grams (0.44lbs) thrown from a distanceof 7.5 cm (2.9”)
02 0.200 joules Resistant against an impact from an object of 200 grams (0.44lbs) thrown from a distanceof 10 cm (3.9”)
03 0.350 joules Resistant against an impact from an object of 200 grams (0.44lbs) thrown from a distanceof 17.5 cm (6.9”)
04 0.500 joules Resistant against an impact from an object of 200 grams (0.44lbs) thrown from a distanceof 25 cm (9.8”)
05 0.700 joules Resistant against an impact from an object of 200 grams (0.44lbs) thrown from a distanceof 35 cm (13.8”)
06 1.000 joules Resistant against an impact from an object of 500 grams (1.1lbs) thrown from a distanceof 20 cm (7.9”)
07 2.000 joules Resistant against an impact from an object of 500 grams (1.1lbs) thrown from a distanceof 40 cm (15.7”)
08 5.000 joules Resistant against an impact from an object of 1.7 kg (3.8lbs) thrown from a distanceof 29.5 cm (11.6”)
09 10.00 joules Resistant against an impact from an object of 5 kg (1.1lbs) thrown from a distanceof 20 cm (7.9”)
10 20.00 joules Resistant against an impact from an object of 5 kg (1.1lbs) thrown from a distanceof 40 cm (15.7”)
The Nexus Storm range is rated at IP66 and IK06.
