EntelliGuard* L

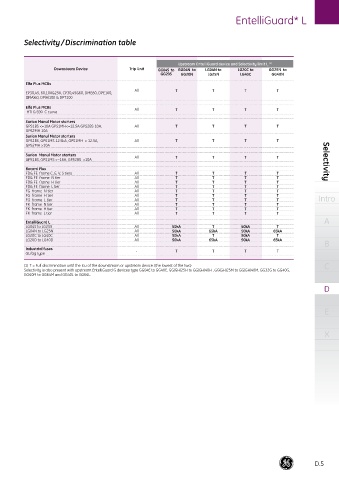

Selectivity / Discrimination table

Upstream EntelliGuard device and Selectivity limit I s (1)
Downsteam Device Trip Unit GG04S to GG04N to LG04N to LG20C to GG25N to
GG20S GG20N LG25N LG40C GG40N
Elfa Plus MCBs
All T T T T
EP30,45, 60,100&250, CP30,45&60, DME60, DPE100,
DP(A)60, DP(A)100 & DPT100
Elfa Plus MCBs All T T T T
HTI & S90 C curve
Surion Manul Motor starters
GPS1BS <=10A GPS1MH<=12.5A GPS2BS 10A, All T T T T
GPS2MH 10A
Surion Manul Motor starters
GPS1BS, GPS1MS 12.5kA, GPS1MH > 12.5A, All T T T T
GPS2MH >10A
Surion Manul Motor starters All T T T T
GPS1BS, GPS1MS >=16A, GPS2BS >10A Selectivity
Record Plus
FD& FE frame C, E, V, S tiers All T T T T
FD& FE frame N tier All T T T T
FD& FE frame H tier All T T T T
FD& FE frame L tier All T T T T
FG frame N tier All T T T T
FG frame H tier All T T T T Intro
FG frame L tier All T T T T
FK frame N tier All T T T T
FK frame H tier All T T T T
FK frame L tier All T T T T
EntelliGuard L A
LG04S to LG25S All 50kA T 50kA T
LG04N to LG25N All 50kA 65kA 50kA 65kA
LG20C to LG40C All 50kA T 50kA T
LG20D to LG40D All 50kA 65kA 50kA 65kA
B
Industrial fuses - T T T T
GL/Gg type

(1) T = Full discrimination until the Icu of the downstream or upstream device. (the lowest of the two) C
Selectivity is also present with upstream EntelliGuard G devices type GG04E to GG40E, GG(GH)25H to GG(GH)40H , GG(GH)25M to GG(GH)40M, GG32G to GG40G,
GG40M to GG64M and GG40L to GG64L.
