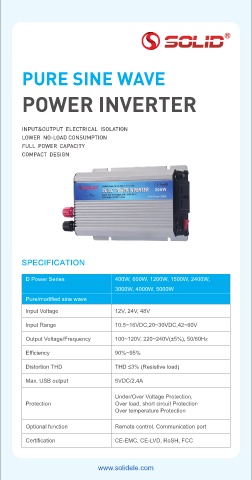

PURE SINE WAVE Solar System Connection
POWER INVERTER
INPUT&OUTPUT ELECTRICAL ISOLATION
Pure Sine Wave Inverter Modified Sine Wave Inverter LOWER NO-LOAD CONSUMPTION
FULL POWER CAPACITY
COMPACT DESIGN Solar power
Generator
or
Utility External Home Appliances
Battery packs
SPECIFICATION SPECIFICATION
MPPT Solar Controller Hybrid Inverter D Power Series 400W, 600W, 1200W, 1500W, 2400W, HYB Series 1000VA, 3000W, 5000W with PWM
3000W, 4000W, 5000W 3000VA, 5000VA, 10,000VA with MPPT
Pure/modified sine wave Off/On & Off grid hybrid inverter
Input Voltage 12V, 24V, 48V Voltage 230VAC
170-280VAC(for personal computers)
Input Range 10.5~16VDC,20~30VDC,42~60V Input Selectable Voltage
90-280VAC(for home appliances)
Output Voltage/Frequency 100~120V, 220~240V(±5%), 50/60Hz Frequency range 50Hz/60Hz(auto sensing)
Voltage(Batt. mode) 230VAC ±5%
Efficiency 90%~95%
efficiency(peak) 93%
Output
Distortion THD THD ≤3% (Resistive load) Transfer time 10ms(personal computer), 20ms(appliance)
Max. USB output 5VDC/2.4A Waveform Pure sine wave
Configurable AC/Solar input priority via LCD
Under/Over Voltage Protection, Switch ability Compatible to mains voltage or geneartor
Protection Over load, short circuit Protection power
Over temperature Protection Features Auto restart while AC is recovering
Protection Overload and short circuit protection
Automatic Voltage Regulator Big Power Compensation Optional function Remote control, Communication port
Voltage regulator Cold start function
Certification CE-EMC, CE-LVD, RoSH, FCC Kit Accessories Parallel card, WIFI kit, GPRS kit
