P. 39

CJX2

交流接触器

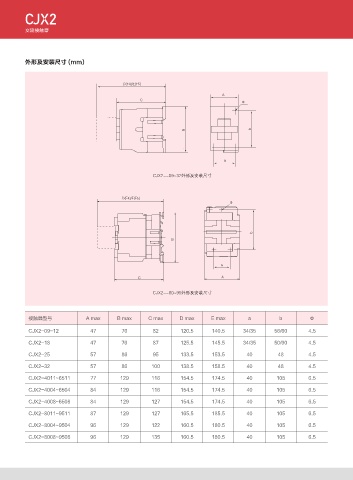

外形及安装尺寸 (mm)

% ' & '

"
$

# C

$+9 _ ्ܰԢ߶ᜈࡆࠩ

% ' & '

C
#

$ "

$+9 _ ्ܰԢ߶ᜈࡆࠩ

接触器型号 A max B max C max D max E max a b Φ

CJX2-09~12 47 76 82 120.5 140.5 34/35 56/60 4.5

CJX2-18 47 76 87 125.5 145.5 34/35 50/60 4.5
CJX2-25 57 86 95 133.5 153.5 40 48 4.5
CJX2-32 57 86 100 138.5 158.5 40 48 4.5

CJX2-4011~6511 77 129 116 154.5 174.5 40 105 6.5

CJX2-4004~6504 84 129 116 154.5 174.5 40 105 6.5
CJX2-4008~6508 84 129 127 154.5 174.5 40 105 6.5
CJX2-8011~9511 87 129 127 165.5 185.5 40 105 6.5

CJX2-8004~9504 96 129 122 160.5 180.5 40 105 6.5
CJX2-8008~9508 96 129 135 160.5 180.5 40 105 6.5
