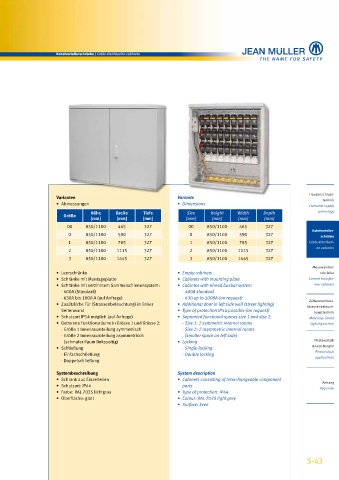

P. 45

Kabelverteilerschränke / Cable distribution cabinets





























                                                                                                              Hausanschluss-
                                                               Variants
                     V ari ant en                              V ar ian t s                                       technik
                     Varianten
                     •  Abmessungen                            •  Dimensions                                 Consumer supply
                                 Höhe     Breite   Tiefe           Size    Height   Width     Depth              technology
                       Größe
                                 [mm]     [mm]     [mm]           [mm]     [mm]      [mm]     [mm]
                         00    850/1100   465       327            00     850/1100   465      327
                                                                                                               Kabelverteiler-
                         0     850/1100   590       327             0     850/1100   590      327                 schränke
                         1     850/1100   785       327             1     850/1100   785      327             Cable distributi-
                         2     850/1100   1115      327             2     850/1100   1115     327               on cabinets
                         3     850/1100   1445      327             3     850/1100   1445     327
                                                                                                               Messwandler-
                     •  Leerschränke                           •  Empty cabinets                                 schränke
                     •  Schränke mit Montageplatte             •  Cabinets with mounting plate               Current transfor-
                     •  Schränke mit verzinntem Sammelschienensystem:  •  Cabintes with tinned busbar system   mer cabinets
                       - 400A (Standard)                         - 400A standard
                       - 630A bis 1000 A (auf Anfrage)           - 630 up to 1000A (on request)
                                                                                                              Zähleranschluss-
                     •  Zusätzliche Tür (Strassenbeleuchtung) in linker   •  Additional door in left side wall (street lighting)  Strassenbeleuch-
                      Seitenwand                               •  Type of protection IP54 possible (on request)  tungstechnik
                     •  Schutzart IP54 möglich (auf Anfrage)   •  Separated functional spaces size 1 and size 2:  Metering- Street
                     •  Getrennte Funktionsräume in Grösse 1 und Grösse 2:    - Size 1: 2 symmetric internal rooms  lighting technic
                       - Größe 1 Innenraumteilung symmetrisch    - Size 2: 2 asymmetric internal rooms
                       - Größe 2 Innenraumteilung asymmetrisch      (smaller space on left side)
                         (schmaler Raum linksseitig)           •  Locking                                      Photovoltaik
                     •  Schließung                               - Single locking                              Anwendungen
                       - Einfachschließung                       - Double locking                               Photovoltaic
                       - Doppelschließung                                                                       applications

                     Systembeschreibung                        System description
                     •  Schrank aus Einzelteilen               •  Cabinets consisting of interchangeable component
                                                                                                                  Anhang
                     •  Schutzart: IP44                         parts                                            Appendix
                     •  Farbe: RAL 7035 lichtgrau              •  Type of protection: IP44
                     •  Oberfläche: glatt                      •  Colour: RAL 7035 light grey
                                                               •  Surface: Even










                                                                                                             S-43
