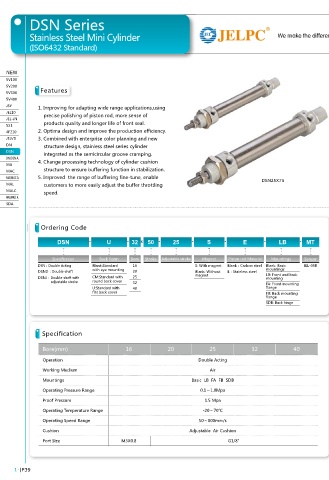

DSN• Series                                                                                                                                                                                      DSN• Series

           Stainless• Steel• Mini• Cylinder                                                    We make the difference            ISO9001:2008                                                   Stainless• Steel• Mini• Cylinder

           (ISO6432• Standard)                                                                                                                                                                                (ISO6432• Standard)



   NEW                                                                                                                                                                                                                                   NEW
   5V100                                                                                                                             Internal• Structure                                                                                 5V100
   5V200                                                                                                                                                                                                                                 5V200
   5V300       Features                                                                                                                                                                                                                  5V300
   5V400                                                                                                                                                                                                                                 5V400
   JSY        1.• Improving• for• adapting• wide• range• applications,using•                                                                                                                                                             JSY
   JEL10      • • • • precise• polishing• of• piston• rod,• more• sense• of•                                                                                                                                                             JEL10
   JEL-JN                                                                                                                              1   2          3  4   5    6  7     8    9    10   11  12    13     14     15        16           JEL-JN
   551        • • • • products• quality• and• longer• life• of• front• seal.                                                                                                                                                             551
   4F210      2.• Optima• design• and• improve• the• production• efficiency.                                                                                                                                                             4F210
   JELVD      3.• Combined• with• enterprise• color• planning• and• new•                                                                                                                                                                 JELVD
   DN         • • • • structure• design,• stainless• steel• series• cylinder•                                                                                                                                                            DN
   DSN        • • • • integrated• as• the• semicircular• groove• cramping.                                                                                                                                                               DSN
                                                                                                                                                                                                                                         DSN
   DSN
   DN/DSN• A.                                                                                                                                                                                                                            DN/DSN• A.
   MA         4.• Change• processing• technology• of• cylinder• cushion•                                                                                                                                                                 MA
   MAC        • • • • structure• to• ensure• buffering• function• in• stabilization.                                                                                                                                                     MAC
   MA/MAC• A.  5.• Improved• • the• range• of• buffering• fine-tune,• enable• •                                                                                                                                                          MA/MAC• A.
                                                                                         DSN25X75
   MAL        • • • • customers• to• more• easily• adjust• the• buffer• throttling•                                                                                                                                                      MAL
   MALC       • • • • speed.                                                                                                                                                                                                             MALC
   MAL/MACL• A.                                                                                                                                                                                                                          MAL/MACL• A.
   SDA                                                                                                                                                                                                                                   SDA



               Ordering• Code

                    DSN        -     U      -  32  x  50  -  25   -    S     -     E      -    LB     -  MT


                   Specification•  Back• Form  Bore  Stroke  Adjustable• stroke  Magnet  Piston• rod• Material  Mountings  Sensor
              DSN:Double• Acting  Blank:Standard  16               S:• With• magnet  Blank:Carbon steel  Blank:• Basic•  JEL-03R
              DSND:Double-shaft  with• eye• mounting  20           Blank:• Without  E:Stainless steel  mountings
              DSNJ:Double-shaft• with•  CM:Standard• with  25      magnet                  LB:• Front• and• back•
                                                                                           mounting
                        •
              • • • • • • • • • • • • • adjustable stroke  round• back• cover  32          FA:• Front• mounting•                     Parts
                                U:Standard• with  40                                       flange
                                flat• back• cover                                          FB:• Back• mounting•
                                                                                           flange
                                                                                           SDB:• Back• hinge                             Number                 Name                Number                 Name
                                                                                                                                            1                  Piston• rod             9                   Barrel
                                                                                                                                            2                 Hexagon• nut             10                  Piston
               Specification
                                                                                                                                            3                  Shaft• seal             11                 Piston• seal

               Bore(mm)                    16             20            25            32            40                                      4                 Hexagon• nut             12               Anti-friction• seal
                                                                                                                                            5                 DU• bearing              13                  Magnet
               Operation                                            Double• Acting
                                                                                                                                            6                 Front• cover             14             Socket• head• cap• screw
               Working• Medium                                          Air
                                                                                                                                            7             Cushion• adjusting• screw    15                  Cushion
               Mountings                                          Basic• • LB• • FA• • FB• • SDB
                                                                                                                                            8                   Cushion                16                 Back• cover
               Operating• Pressure• Range                            0.1~1.0Mpa •
               Proof• Pressure• • • •                                 1.5• Mpa
               Operating• Temperature• Range                         -20~70℃
               Operating• Speed• Range•                             50~800mm/s
               Cushion                                           Adjustable• • Air• Cushion
               Port• Size                 M5X0.8                              G1/8″




      1-|P 39                                                                                                                                                                                                                        1-|P 40
