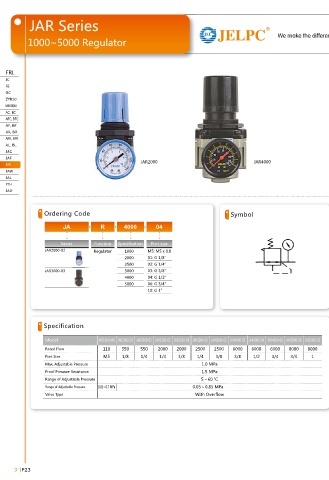

JAR• Series JAF/JAR• Series

We make the difference ISO9001:2008
1000~5000• Regulator 1000~5000• Air• Filter

JAF• Series
FRL FRL
JC 1000~5000• Air• Filter JC
FE Overall• Dimension FE
GC GC
ZYR10 ZYR10
MAR300LK JAF MAR300LK
AC, BC AC, BC
AFC,• BFC AFC,• BFC
AF,• BF AF,• BF
AR,• BR AR,• BR
AFR,• BFR AFR,• BFR
AL,• BL AL,• BL
JAC JAC
JAF
JAF JAF
JAR2000 JAR4000
JAR
JAR JAR
JAR
JAW JAW
JAL JAL
PTH PTH
JAD JAD
Ordering• Code Symbol Dimension
• • • Model Bore A B C D
JA - R - 4000 - 04
JAF1000 M5 66 7 25 -
JAF2000 1/8• -• 1/4 97.5 11 40 40
Series Function Specification Port• size
JAR2000-02 Regulator 1000 M5:• M5 x• 0.8 JAF3000 1/4• -• 3/8 132.5 14 53 53
•
2000 01: G 1/8″ JAF4000 3/8• -• 1/2 168.5 18 70 70
2500 02: G 1/4″ JAF4000-06 3/4• 172.5 20 70 70
JAR3000-03 3000 03: G 3/8″ JAF5000 3/4• -• 1 247.5 24 90 90
4000 04: G 1/2″
5000 06: G 3/4″
JAR• Series
10: G 1″

Overall• Dimension 1000~5000• Regulator

Specification
JA R
JAR
Model JAR1000-M5 JAR2000-01 JAR2000-02 JAR2500-02 JAR2500-03 JAR3000-02 JAR3000-03 JAR4000-03 JAR4000-04 JAR4000-06 JAR5000-06 JAR5000-10
Rated• Flow 110 550 550 2000 2000 2500 2500 6000 6000 6000 8000 8000
Port• Size M5 1/8 1/4 1/4 3/8 1/4 3/8 3/8 1/2 3/4 3/4 1
Max.• Adjustable• Pressure 1.0• MPa
Proof• Pressure• Resistance 1.5• MPa Dimension
Range• of• Adjustable• Pressure 5～60 ℃
Range• of• Adjustable• Pressure 0.05～0.7 MPa 0.05～0.85 MPa • • • Model Bore A B C D E
Valve• Type With• Overflow JAR1000 M5 61.5 11 25 25 28
JAR2000 1/8• -• 1/4 95 17 40 40 34
JAR2500 1/4• -• 3/8 102.5 25 48 53 34
JAR3000 1/4• -• 3/8• 127.5 35 53 53 40
JAR4000 3/8• -• 1/2 149.5 37.5 70 70 54
JAR4000-06 3/4• 154 40.5 70 75 54
JAR5000 3/4• -• 1 168 48 90 90 54
