P. 40

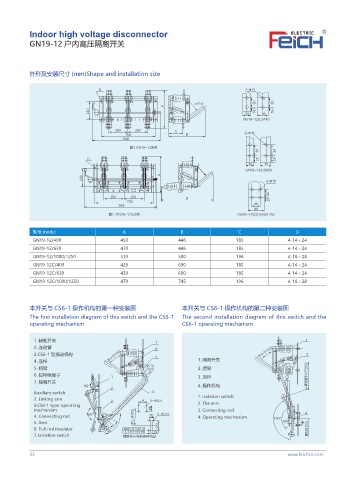

Indoor high voltage disconnector
GN19-12 户内高压隔离开关
外形及安装尺寸 (mm)Shape and installation size
%
ō
"
(/ $
$
#
ఫ (/ ㈨݄
%
(/ $
"
#
ఫ (/ $㈨݄ (/ $
型号 model A B C D
GN19-12/400 450 446 185 4-14×24
GN19-12/630 470 446 185 4-14×24
GN19-12/1000/1250 510 500 196 4-18×28
GN19-12C/400 420 690 185 4-14×24
GN19-12C/630 430 690 185 4-14×24
GN19-12C/1000/1250 470 745 196 4-18×28
本开关与 CS6-1 操作机构的第一种安装图 本开关与 CS6-1 操作机构的第二种安装图
The first installation diagram of this switch and the CS6-1 The second installation diagram of this switch and the
operating mechanism CS6-1 operating mechanism
1. 辅助开关
2. 连动臂
3.CS6-1 型操动机构 ̺ᄼλ ̺ᄼλ c
4. 连杆 1. 隔离开关
c
5. 拐臂 e 2. 拐臂
6. 拉杆绝缘子 3. 连杆 ⻨ౝ䲏̺ᄼλ
7. 隔离开关
c 4. 操作机构
Auxiliary switch c
2. Linking arm 1. Isolation switch
"
3.CS6-1 type operating 2. The arm
mechanism 3. Connecting rod
4. Connecting rod c ̺ᄼλ Y 4. Operating mechanism c
5. Arm c c
c
6. Pull rod insulator c c c ' ' - ' - ⻨ౝ㏓
-
"
7. Isolation switch 䒲ߖᐭڠ̻ᱧᲱᐭႁఫ
33 www.feichcn.com
