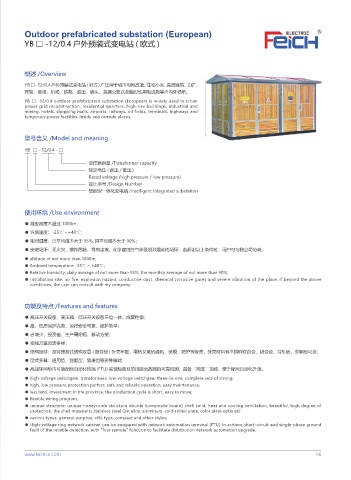

Outdoor prefabricated substation (European)
YB □ -12/0.4 户外预装式变电站 ( 欧式 )

概述 /Overview

YB□-12/0.4 户外预装式变电站(欧式)广泛用于城市电网改造、住宅小区、高层建筑、工矿、
宾馆、商场、机场、铁路、油田、码头、高速公路以及临时性用电设施等户内外场所。
YB □ -12/0.4 outdoor prefabricated substation (European) is widely used in urban
power grid reconstruction, residential quarters, high-rise buildings, industrial and
mining, hotels, shopping malls, airports, railways, oil fields, terminals, highways and
temporary power facilities. Inside and outside places.

型号含义 /Model and meaning

YB □ - 12/0.4 - □
变压器容量 /Transformer capacity
额定电压 ( 高压 / 低压 )
Rated voltage (high pressure / low pressure)
设计序号 /Design Number
智能型一体化变电站 /Intelligent integrated substation

使用环境 /Use environment
● 海拔高度不超过 1000m；
● 环境温度：-25℃ ~+40℃；
● 相对湿度：日平均值不大于 95%, 月平均值不大于 90%；
● 安装场所：无火灾、爆炸危险、导电尘埃、化学腐蚀性气体及剧烈震动的场所，若超出以上条件时，用户可与我公司协商。
● altitude of not more than 1000m;
● Ambient temperature: -25℃ ~ +40℃ ;
● Relative humidity: daily average of not more than 95%, the monthly average of not more than 90%;
● installation site: no fire, explosion hazard, conductive dust, chemical corrosive gases and severe vibration of the place, if beyond the above
conditions, the user can consult with my company.

功能及特点 /Features and features

● 高压开关设备、变压器、低压开关设备三位一体，成套性强；
● 高、低压保护完善，运行安全可靠，维护简单；
● 占地少，投资省、生产周期短、移动方便；
● 接线方案灵活多样；
● 结构独特：独特蜂窝式结构双层 ( 复合板 ) 外壳牢固，隔热又散热通风、美观、防护等级高，外壳材料有不锈钢钦合金、铝合金、冷轧板、彩钢板可选；
● 型式多样：通用型、别墅型、紧凑型等多种样式；
● 高压环网柜内可装配网自动化终端 (FTU) 实现短路及单相接地故障的可靠检测，具备“四遥”功能，便于配网自动化升级。
● high-voltage switchgear, transformers, low-voltage switchgear three-in-one, complete sets of strong;
● high, low pressure protection perfect, safe and reliable operation, easy maintenance;
● less land, investment in the province, the production cycle is short, easy to move;
● flexible wiring program;
● unique structure: unique honeycomb structure double (composite board) shell solid, heat and cooling ventilation, beautiful, high degree of
protection, the shell material is stainless steel Qin alloy, aluminum, cold-rolled plate, color plate optional;
● various types: general-purpose, villa type, compact and other styles;
● High-voltage ring network cabinet can be equipped with network automation terminal (FTU) to achieve short-circuit and single-phase ground
fault of the reliable detection, with "four remote" function to facilitate distribution network automation upgrade.
