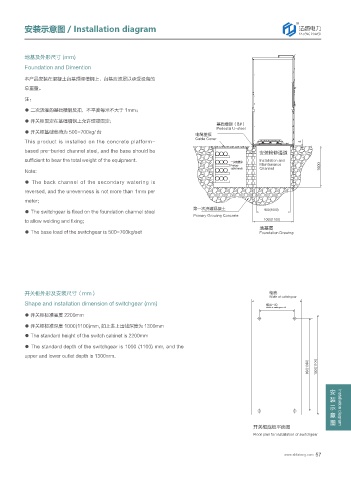

安装示意图 / Installation diagram مอ׈৯
'"5&/( 108&3

地基及外形尺寸 (mm)
Foundation and Dimention
本产品安装在混凝土台基预埋槽钢上，台基应该足以承受设备的
总重量。

注：
● 二次浇灌的基础槽钢反扣，不平度每米不大于 1mm；

● 开关柜固定在基础槽钢上允许焊接固定；
۳ᆩയᨂἷ Ἰ
1FEFTUBM 6 TUFFM
● 开关柜基础载荷为 500-700kg/ 台 ႃ፶ᄦ౜
$BCMF $PWFS
This product is installed on the concrete platform-
based pre-buried channel steel, and the base should be ߷ᜉೝξᤰ᥋
sufficient to bear the total weight of the equipment. ʷ൓ႃ፶෤ *OTUBMMBUJPO BOE
1SJNBSZ .BJOUFOBODF
DBCMF USFODI $IBOOFM
Note:
● The back channel of the secondary watering is
reversed, and the unevenness is not more than 1mm per
meter;
ኄʷ൓฻༟ຉіژ
● The switchgear is fixed on the foundation channel steel
1SJNBSZ (SPVUJOH $PODSFUF
to allow welding and fixing;
ڡ۳ڏ
● The base load of the switchgear is 500-700kg/set 'PVOEBUJPO %SBXJOH

开关柜外形及安装尺寸（mm） ಅࠕ
8JEUI PG TXJUDIHFBS
Shape and installation dimension of switchgear (mm) ಅࠕ
8JEUI PG TXJUDIHFBS
● 开关柜标准高度 2200mm

● 开关柜标准深度 1000(1100)mm, 如上进上出线深度为 1300mm
● The standard height of the switch cabinet is 2200mm
● The standard depth of the switchgear is 1000 (1100) mm, and the
upper and lower outlet depth is 1300mm.

安装示意图

नТಅअ౜ࣱ᭧ڏ Installation diagram
'MPPS QMBO GPS JOTUBMMBUJPO PG TXJUDIHFBS
